45-2234.11J0.000

Active

EAO

CONFIG SW BODY PUSHBUTTON ILLUM

Search across all available documentation for this part.

Active

EAO

CONFIG SW BODY PUSHBUTTON ILLUM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

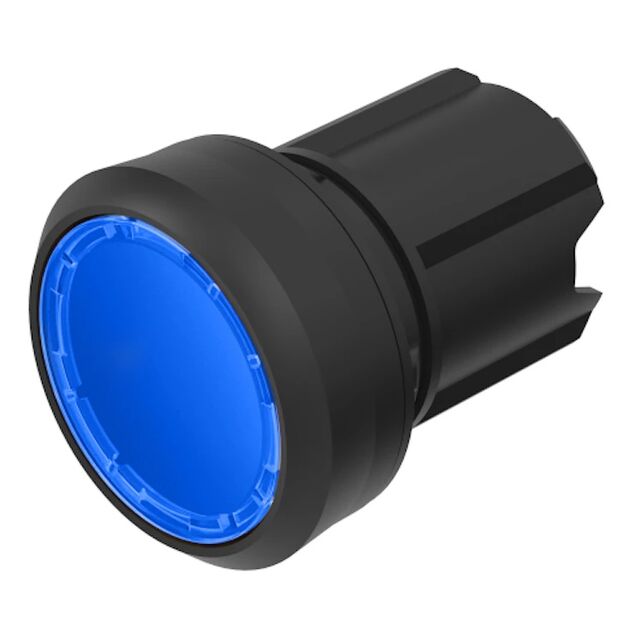

Configurable Switch Body Pushbutton, Round Illuminated - Blue

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	45-2234.11J0.000	45-2234 Series

(Select First, Then Apply Filters) Compatible Series	45, EAO	45, EAO
Actuator Type	Pushbutton, Round	Pushbutton, Round
Illumination	Illuminated - Blue	Illuminated, Illuminated - Yellow, Illuminated - Green, Illuminated - Blue, Illuminated - White
Panel Cutout Dimensions	22.3 mm	22.3 - 30.5 mm
Requires	Illumination Source, Contact Block(s)	Illumination Source, Contact Block(s)
Type	Maintained	Maintained

CONFIG SW BODY PUSHBUTTON ILLUM

Part	Actuator Type	Type	Requires	Illumination	Panel Cutout Dimensions	(Select First, Then Apply Filters) Compatible Series
EAO 45-2234.31K0.000	Pushbutton, Round	Maintained	Contact Block(s), Illumination Source	Illuminated	22.3 mm	45, EAO
EAO 45-2234.4FG0.000	Pushbutton, Round	Maintained	Contact Block(s), Illumination Source	Illuminated - Yellow	30.5 mm	45, EAO
EAO 45-2234.11G0.000	Pushbutton, Round	Maintained	Contact Block(s), Illumination Source	Illuminated - Yellow	22.3 mm	45, EAO
EAO 45-2234.21E0.000	Pushbutton, Round	Maintained	Contact Block(s), Illumination Source		22.3 mm	45, EAO
EAO 45-2234.11H0.000	Pushbutton, Round	Maintained	Contact Block(s), Illumination Source	Illuminated - Green	22.3 mm	45, EAO
EAO 45-2234.21G0.000	Pushbutton, Round	Maintained	Contact Block(s), Illumination Source	Illuminated - Yellow	22.3 mm	45, EAO
EAO 45-2234.4FJ0.000	Pushbutton, Round	Maintained	Contact Block(s), Illumination Source	Illuminated - Blue	30.5 mm	45, EAO
EAO 45-2234.4FK0.000	Pushbutton, Round	Maintained	Contact Block(s), Illumination Source	Illuminated	30.5 mm	45, EAO
EAO 45-2234.21K0.000	Pushbutton, Round	Maintained	Contact Block(s), Illumination Source	Illuminated	22.3 mm	45, EAO
EAO 45-2234.11J0.000	Pushbutton, Round	Maintained	Contact Block(s), Illumination Source	Illuminated - Blue	22.3 mm	45, EAO
