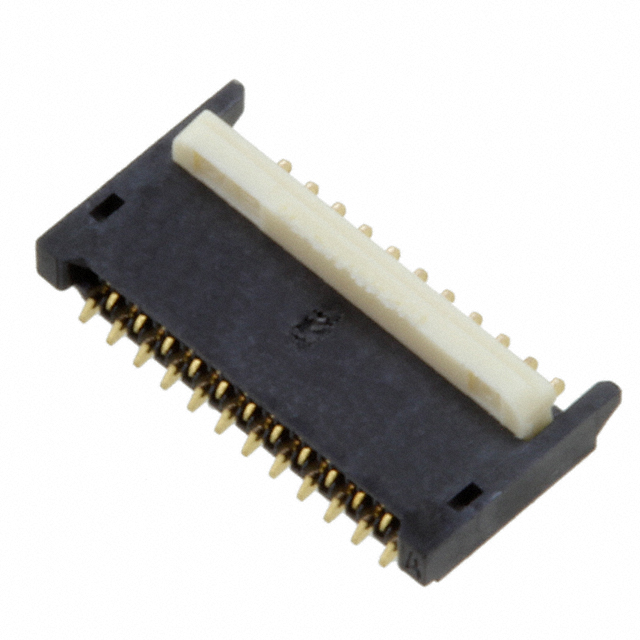

FR02C023JA1-R5000
ActiveJAE Electronics
CONN FPC 23POS 0.2MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
FR02C023JA1-R5000
ActiveJAE Electronics
CONN FPC 23POS 0.2MM R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FR02C023JA1-R5000 |
|---|---|
| Actuator Color | Natural |
| Actuator Material | Plastic |
| Cable End Type | Tabbed or Tapered |
| Connector/Contact Type | Contacts, Top and Bottom |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 0.25 A |
| Features | Low Insertion Force (LIF) |
| FFC, FCB Thickness | 0.2 mm |
| Flat Flex Type | FPC |
| Height Above Board [z] | 0.032 " |
| Height Above Board [z] | 0.81 mm |
| Housing Color | Black |
| Housing Material | Plastic |
| Locking Feature | Flip Lock, Backlock |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 23 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.2 mm |
| Pitch [x] | 0.008 in |
| Termination | Solder |
| Voltage Rating | 50 V |
