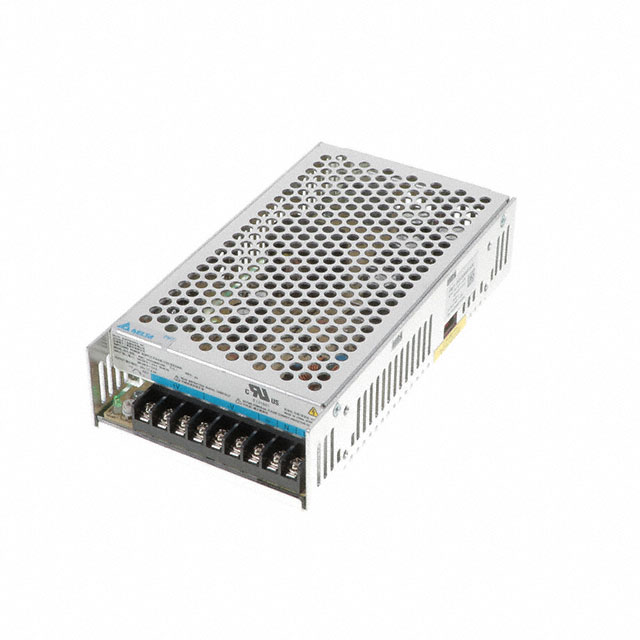

PMT-24V200W1AM

Obsolete

Delta Electronics

AC/DC CONVERTER 24V 200W

Search across all available documentation for this part.

Obsolete

Delta Electronics

AC/DC CONVERTER 24V 200W

Technical Specifications

Parameters and characteristics for this part

Part	Number of Outputs	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Isolation	Current - Output 1	Power (Watts)	Applications	Type	Mounting Type	Features	Voltage - Input [Min]	Voltage - Input [Max]
Delta Electronics PMT-24V35W1AG	1	CB CCC CE cURus TUV	-10 °C	70 °C	85 %	24 V	3.86 in	3.86 in	1.5 "	98 mm	98 mm	38 mm	3000 V	1.46 A	35 W	ITE (Commercial)	Enclosed	Chassis Mount	Adjustable Output Universal Input
Delta Electronics PMT-24V50W1AG	1	CB CCC CE cURus TUV	-10 °C	70 °C	86 %	24 V	3.86 in	3.86 in	1.5 "	98 mm	98 mm	38 mm	3000 V	2.09 A	50 W	ITE (Commercial)	Enclosed	Chassis Mount	Adjustable Output Universal Input
Delta Electronics PMT-24V100W1AH	1	CB CCC CE cURus TUV	-10 °C	70 °C	86 %	24 V	3.82 in	6.22 "	1.5 "	158 mm	97 mm	38 mm	3000 V	4.5 A	100 W	ITE (Commercial)	Enclosed	Chassis Mount	Adjustable Output	90 VAC 180 VAC	132 VAC 264 VAC
Delta Electronics PMT-24V200W1AM	1	CB cURus	-10 °C	60 °C	88.5 %	24 V	4.53 "	8.46 "	1.97 "	215 mm	115 mm	50 mm	3000 V	8.8 A	200 W	ITE (Commercial)	Enclosed	Chassis Mount	Adjustable Output	90 VAC 180 VAC	132 VAC 264 VAC
