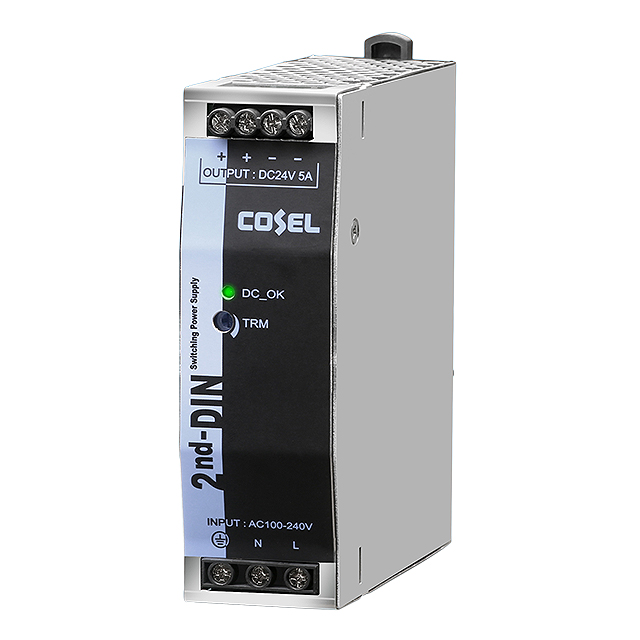

KLEA120F-24

Active

Cosel USA, Inc.

AC/DC DIN RAIL SUPPLY 24V 120W

Search across all available documentation for this part.

Active

Cosel USA, Inc.

AC/DC DIN RAIL SUPPLY 24V 120W

Technical Specifications

Parameters and characteristics for this part

Specification	KLEA120F-24

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	TUV, CE, cULus, cURus
Current - Output (Max) [Max]	5 A
Efficiency	90 %
Features	PFC, Adjustable Output, Universal Input
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Size / Dimension [x]	4.77 in
Size / Dimension [x]	121.2 mm
Size / Dimension [y]	1.46 in
Size / Dimension [y]	37 mm
Size / Dimension [z]	124 mm
Size / Dimension [z]	4.88 "
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Number of Outputs	Voltage - Output 1	Features	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Applications	Voltage - Isolation	Input Type
Cosel USA, Inc. KLEA120F-48	CE cULus cURus TUV	-20 °C	70 °C	2.5 A	1.46 in	4.77 in	124 mm	37 mm	121.2 mm	4.88 "	88 %	1	48 V	Adjustable Output PFC Universal Input	85 VAC	264 VAC	ITE (Commercial)	3000 V	AC
Cosel USA, Inc. KLEA120F-24	CE cULus cURus TUV	-20 °C	70 °C	5 A	1.46 in	4.77 in	124 mm	37 mm	121.2 mm	4.88 "	90 %	1	24 V	Adjustable Output PFC Universal Input	85 VAC	264 VAC	ITE (Commercial)	3000 V	AC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 24V 120W
