Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DS28E05EVKIT# | DS28E05 Series |
|---|---|---|
| Access Time | - | 2 µs |
| Function | EEPROM | EEPROM |
| Memory Format | - | EEPROM |
| Memory Interface | - | 1-Wire® |
| Memory Organization | - | 112 |
| Memory Organization | - | 8 |
| Memory Size | - | 896 bit |
| Memory Type | - | Non-Volatile |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 6-SMD, J-Lead, SOT-23-3, TO-236-3, SC-59, WLBGA, 4-XFBGA, 2-XDFN |
| Primary Attributes | USB Powered | USB Powered |
| Secondary Attributes | Graphical User Interface (GUI) | Graphical User Interface (GUI) |
| Supplied Contents | Cable(s), Board(s) | Cable(s), Board(s) |
| Supplier Device Package | - | 6-TSOC, SOT-23-3, 4-WLP, 2-SFN (3.5x5) |
| Supplier Device Package | - | 0.91 |
| Supplier Device Package | - | 0.91 |
| Technology | - | EEPROM |
| Type | Memory | Memory |
| Voltage - Supply | - | 3.6 - 3.63 V |
| Voltage - Supply | - | 1.71 - 3 V |
| Write Cycle Time - Word, Page | - | 5 µs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 111.46 | |
DS28E05 Series
IC EEPROM 896BIT 1-WIRE 6TSOC
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Memory Size | Package / Case | Memory Format | Voltage - Supply [Max] | Voltage - Supply [Min] | Memory Organization [custom] | Memory Organization [custom] | Mounting Type | Supplier Device Package | Technology | Memory Interface | Memory Type | Access Time | Supplier Device Package [x] | Supplier Device Package [y] | Supplied Contents | Secondary Attributes | Type | Function | Primary Attributes | Write Cycle Time - Word, Page |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated DS28E05P+T | 85 °C | -40 °C | 896 bit | 6-SMD, J-Lead | EEPROM | 3.6 V | 3 V | 112 | 8 | Surface Mount | 6-TSOC | EEPROM | 1-Wire® | Non-Volatile | 2 µs | ||||||||
Analog Devices Inc./Maxim Integrated DS28E05R+T | 85 °C | -40 °C | 896 bit | SC-59, SOT-23-3, TO-236-3 | EEPROM | 3.6 V | 3 V | 112 | 8 | Surface Mount | SOT-23-3 | EEPROM | 1-Wire® | Non-Volatile | 2 µs | ||||||||
Analog Devices Inc./Maxim Integrated DS28E05X+U | 85 °C | -40 °C | 896 bit | 4-XFBGA, WLBGA | EEPROM | 3.63 V | 1.71 V | 112 | 8 | Surface Mount | 4-WLP | EEPROM | 1-Wire® | Non-Volatile | 0.91 | 0.91 | |||||||
Analog Devices Inc./Maxim Integrated DS28E05EVKIT# | Board(s), Cable(s) | Graphical User Interface (GUI) | Memory | EEPROM | USB Powered | ||||||||||||||||||
Analog Devices Inc./Maxim Integrated DS28E05GB+U | 85 °C | -40 °C | 896 bit | 2-XDFN | EEPROM | 3.6 V | 3 V | 112 | 8 | Surface Mount | 2-SFN (3.5x5) | EEPROM | 1-Wire® | Non-Volatile | 2 µs | ||||||||
Analog Devices Inc./Maxim Integrated DS28E05GB+T | 85 °C | -40 °C | 896 bit | 2-XDFN | EEPROM | 3.6 V | 3 V | 112 | 8 | Surface Mount | 2-SFN (3.5x5) | EEPROM | 1-Wire® | Non-Volatile | 2 µs | ||||||||
Analog Devices Inc./Maxim Integrated DS28E05P+ | 85 °C | -40 °C | 896 bit | 6-SMD, J-Lead | EEPROM | 3.6 V | 3 V | 112 | 8 | Surface Mount | 6-TSOC | EEPROM | 1-Wire® | Non-Volatile | 2 µs | ||||||||
Analog Devices Inc./Maxim Integrated DS28E05R+U | 85 °C | -40 °C | 896 bit | SC-59, SOT-23-3, TO-236-3 | EEPROM | 3.6 V | 3 V | 112 | 8 | Surface Mount | SOT-23-3 | EEPROM | 1-Wire® | Non-Volatile | 2 µs | ||||||||
Analog Devices Inc./Maxim Integrated DS28E05X-047-B5+T | 85 °C | -40 °C | 896 bit | 4-XFBGA, WLBGA | EEPROM | 3.63 V | 1.71 V | 112 | 8 | Surface Mount | 4-WLP | EEPROM | 1-Wire® | Non-Volatile | 0.91 | 0.91 | 5 µs |
Description
General part information
DS28E05 Series

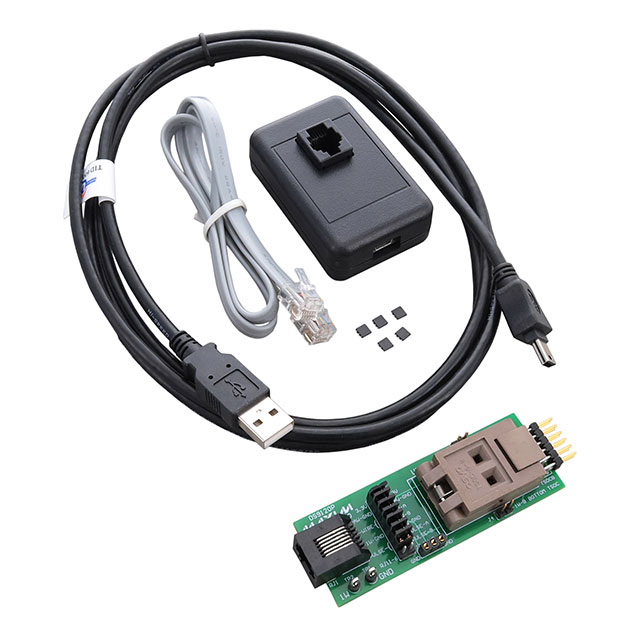

DS28E05 EEPROM Memory Evaluation Board
