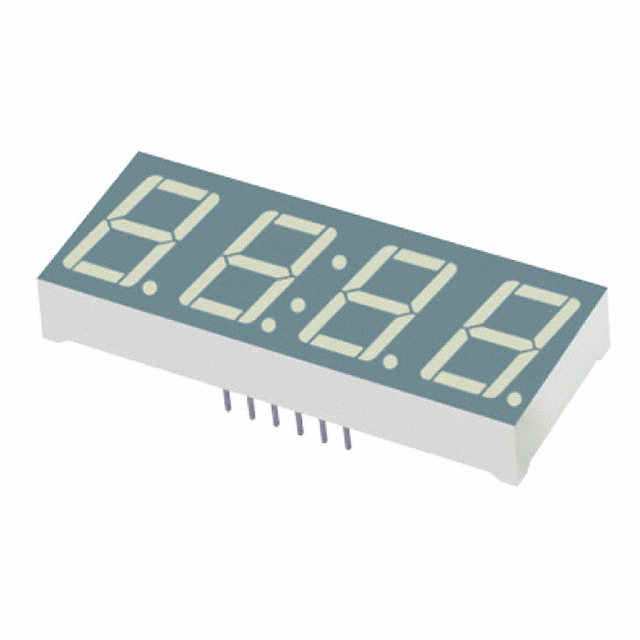

XDUG14A4-A

Active

SunLED

DISP 7SEG 0.56" QUAD GRN 12DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XDUG14A4-A

Active

SunLED

DISP 7SEG 0.56" QUAD GRN 12DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XDUG14A4-A	XDUG14 Series

Color	Green	Green
Common Pin	Common Anode	Common Anode
Current - Test	10 mA	10 mA
Digit/Alpha Size	0.56 in	0.56 in
Digit/Alpha Size	14.22 mm	14.22 mm
Display Type	7-Segment	7-Segment
Millicandela Rating	4 mcd	4 - 11 mcd
Number of Characters	4	4
Number of Characters	-	1
Package / Case	15.24 mm	15.24 mm
Package / Case	0.6 in	0.6 in
Package / Case	12-DIP	12-DIP, 10-DIP
Power Dissipation (Max) [Max]	62.5 mW	62.5 mW
Size / Dimension [x]	0.748 in	0.748 - 0.75 in
Size / Dimension [x]	19 mm	19 - 19.05 mm
Size / Dimension [y]	50.3 mm	12.7 - 50.3 mm
Size / Dimension [y]	1.98 in	0.5 - 1.98 in
Size / Dimension [z]	0.319 in	0.315 - 0.319 in
Size / Dimension [z]	8.1 mm	8 - 8.1 mm
Voltage - Forward (Vf) (Typ)	2 V	2 V
Wavelength - Peak	565 nm	565 nm

XDUG14 Series

DISP 7SEG 0.56" QUAD GRN 12DIP

Part	Current - Test	Millicandela Rating	Common Pin	Wavelength - Peak	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Digit/Alpha Size	Digit/Alpha Size	Power Dissipation (Max) [Max]	Display Type	Voltage - Forward (Vf) (Typ)	Number of Characters	Package / Case	Package / Case	Package / Case	Color	Number of Characters [custom]
SunLED XDUG14A4-A	10 mA	4 mcd	Common Anode	565 nm	50.3 mm	0.748 in	1.98 in	0.319 in	8.1 mm	19 mm	0.56 in	14.22 mm	62.5 mW	7-Segment	2 V	4	15.24 mm	0.6 in	12-DIP	Green
SunLED XDUG14A	10 mA	11 mcd	Common Anode	565 nm	12.7 mm	0.75 in	0.5 in	0.315 "	8 mm	19.05 mm	0.56 in	14.22 mm	62.5 mW	7-Segment	2 V		15.24 mm	0.6 in	10-DIP	Green	1
SunLED XDUG14A4-1A	10 mA	4 mcd	Common Anode	565 nm	50.3 mm	0.748 in	1.98 in	0.319 in	8.1 mm	19 mm	0.56 in	14.22 mm	62.5 mW	7-Segment	2 V	4	15.24 mm	0.6 in	12-DIP	Green

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	200	$ 4.47

Description

General part information

XDUG14 Series

Display Modules - LED Character and Numeric Green 7-Segment 4 Character Common Anode 2V 10mA 0.748" H x 1.980" W x 0.319" D (19.00mm x 50.30mm x 8.10mm) 12-DIP (0.600", 15.24mm)

Documents

Technical documentation and resources
