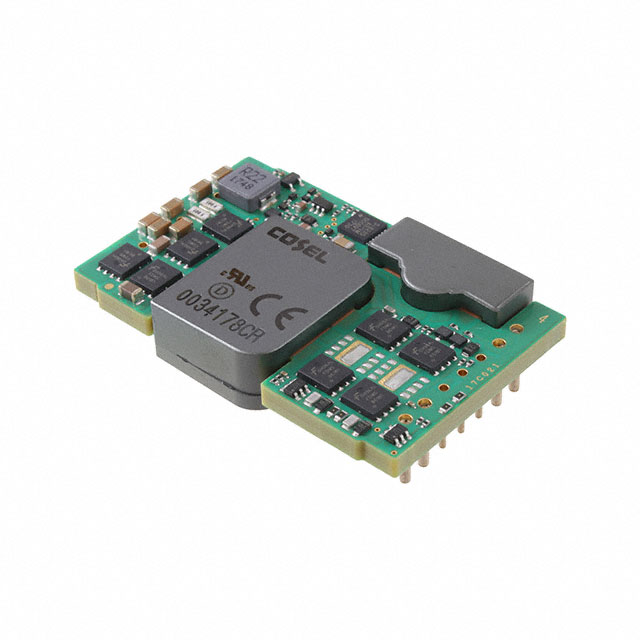

CHS7004812H

Active

Cosel USA, Inc.

DC-DC REGULATED POWER SUPPLY MODULE,

Search across all available documentation for this part.

Active

Cosel USA, Inc.

DC-DC REGULATED POWER SUPPLY MODULE,

Technical Specifications

Parameters and characteristics for this part

Specification	CHS7004812H

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Control Features	Active Low, Enable
Current - Output (Max) [Max]	58.5 A
Efficiency	96 %
Features	Remote Sense, Adjustable Output
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Quarter Brick
Power (Watts)	702 W
Size / Dimension [x]	2.3 in
Size / Dimension [x]	58.4 mm
Size / Dimension [y]	36.8 mm
Size / Dimension [y]	1.45 in
Size / Dimension [z]	10.5 mm
Size / Dimension [z]	0.41 "
Supplier Device Package	Quarter Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	76 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	12 V

Part	Package / Case	Voltage - Output 1	Mounting Type	Voltage - Isolation	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Approval Agency	Number of Outputs	Applications	Type	Efficiency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Features	Power (Watts)	Supplier Device Package	Voltage - Input (Max) [Max]	Control Features
Cosel USA, Inc. CHS7004812H-B	Quarter Brick	12 V	Through Hole	2250 VDC	36 V	85 °C	-40 °C	58.5 A	CE cURus TUV	1	ITE (Commercial)	Isolated Module	96 %	1.47 in	2.32 in	0.5 in	37.3 mm	58.9 mm	12.7 mm	Adjustable Output Baseplate Remote Sense	702 W	Quarter Brick	76 V	Active Low Enable
Cosel USA, Inc. CHS7004812H	Quarter Brick	12 V	Through Hole	2250 VDC	36 V	85 °C	-40 °C	58.5 A	CE cURus TUV	1	ITE (Commercial)	Isolated Module	96 %	1.45 in	2.3 in	0.41 "	36.8 mm	58.4 mm	10.5 mm	Adjustable Output Remote Sense	702 W	Quarter Brick	76 V	Active Low Enable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 12V 58.5A 36V - 76V Input
