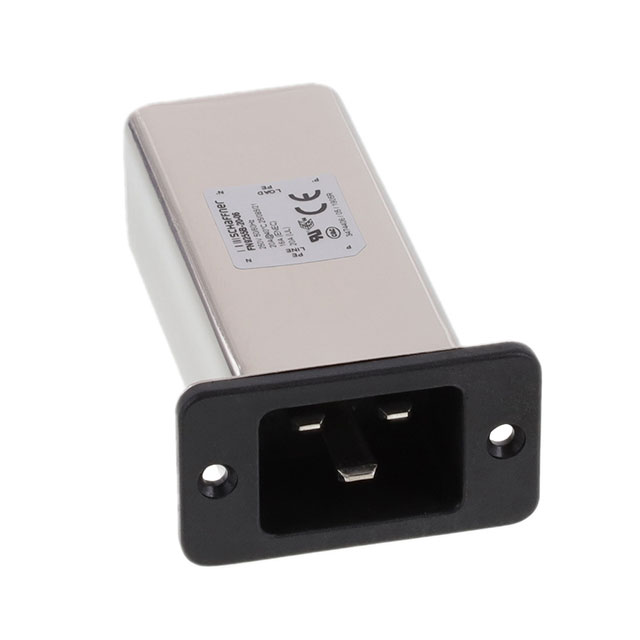

FN9255B-20-06
ObsoleteTE Connectivity Raychem Cable Protection
PWR ENT RCPT IEC320-C20 PANEL QC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FN9255B-20-06 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | CQC, CE, UR, ENEC |
| Connector Style | IEC 320-C20 |
| Connector Type | Male Blades, Receptacle |
| Features | Front Side Mount |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Flange |
| Panel Cutout Dimensions [x] | 34.9 mm |
| Panel Cutout Dimensions [y] | 27.1 mm |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 37.86 | |
Description
General part information
FN9255B Series
Power Entry Connector Receptacle, Male Blades IEC 320-C20 Panel Mount, Flange
