SSL025PC2DC012N

Active

TE Connectivity Aerospace, Defense and Marine

SSL025PC2DC012N = WDUALOBE

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

SSL025PC2DC012N = WDUALOBE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSL025PC2DC012N	SSL025 Series

Connector Style	-	D-Type, Nano-D
Connector Type	-	Receptacle, Female Sockets
Contact Finish	-	Tin-Lead
Contact Material	-	Brass
Contact Type	-	Signal
Dielectric Material	-	Liquid Crystal Polymer (LCP)
Flange Feature	-	Female Screwlock, Mating Side
Mounting Type	-	Through Hole, Right Angle, Board Edge
null		-
Number of Rows	-	1
Termination	-	Wire Wrap

SSL025M6CN = THRU-HOLE

Part	Contact Material	Connector Type	Termination	Dielectric Material	Connector Style	Contact Finish	Flange Feature	Mounting Type	Number of Rows	Contact Type
TE Connectivity Aerospace, Defense and Marine SSL025M6CN	Brass	Receptacle, Female Sockets	Wire Wrap	Liquid Crystal Polymer (LCP)	D-Type, Nano-D	Tin-Lead	Female Screwlock, Mating Side	Board Edge, Right Angle, Through Hole	1	Signal
TE Connectivity Aerospace, Defense and Marine SSL025PC2DC012N
TE Connectivity Aerospace, Defense and Marine SSL025M6AN

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	13	$ 231.49

General part information

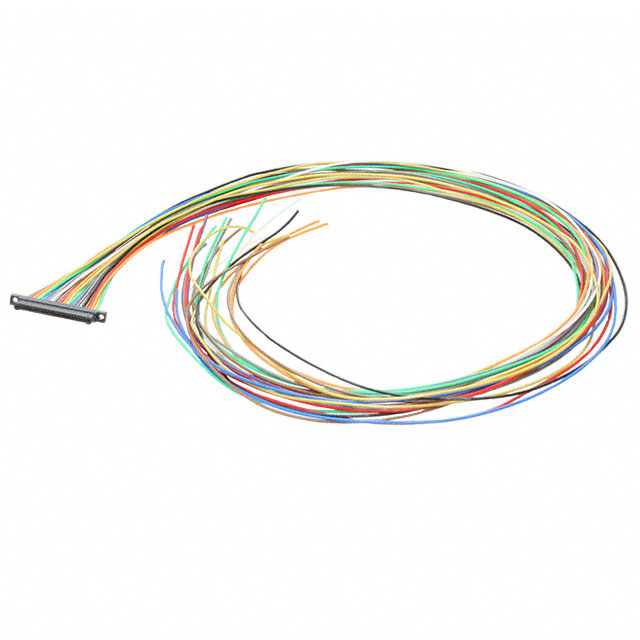

Position Cable Assembly Rectangular

Technical documentation and resources

No documents available
