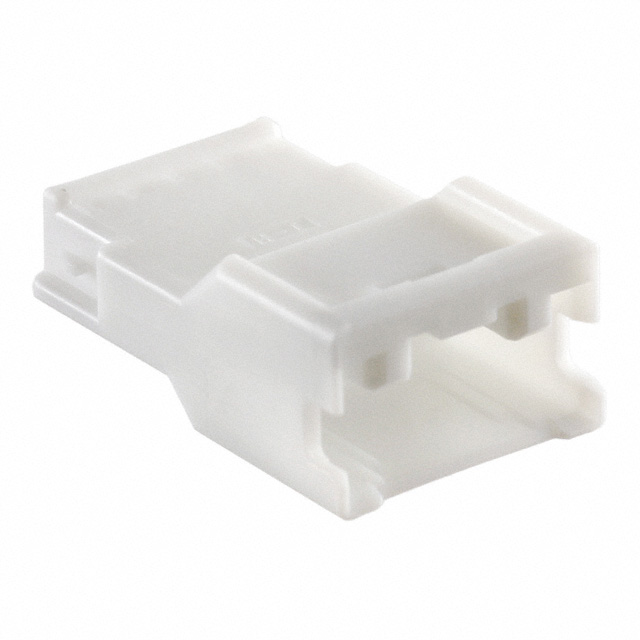

PNIRR-05VF
ActiveJST Sales America Inc.
CONN RCPT HSG 5POS 2.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsJST Prefix Suffix Chart
PNIRR-05VF
ActiveJST Sales America Inc.
CONN RCPT HSG 5POS 2.00MM
Deep-Dive with AI
DocumentsJST Prefix Suffix Chart
Technical Specifications
Parameters and characteristics for this part
| Specification | PNIRR-05VF |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.44 | |
| 10 | $ 0.39 | |||
| 25 | $ 0.35 | |||
| 50 | $ 0.33 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.29 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.23 | |||
| 2500 | $ 0.21 | |||
Description
General part information
PNIRR-05 Series
5 Rectangular Connectors - Housings Receptacle Natural 0.079" (2.00mm)
