A51-428-3188220

Active

ITT Cannon, LLC

CONN SSMB PLUG R/A 50 OHM SOLDER

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN SSMB PLUG R/A 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	A51-428-3188220

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms

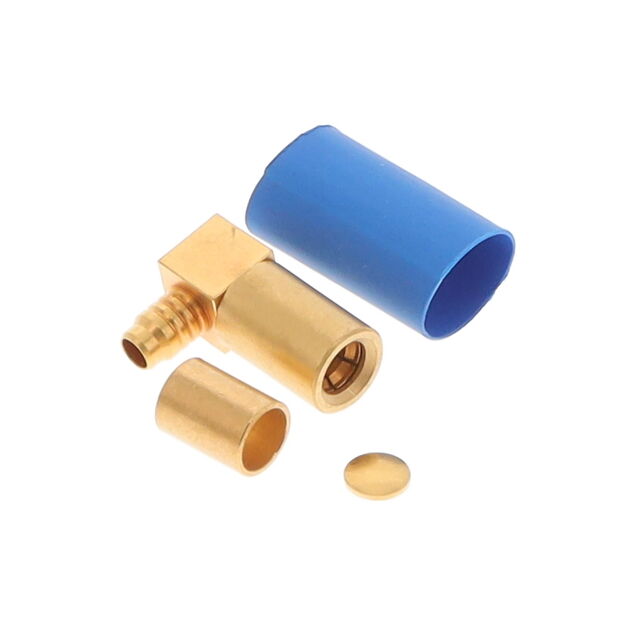

Includes	1 Heat Shrink, 1 Connector, 1 End Cap, 1 Ferrule
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Body Finish	Mounting Type	Center Contact Material	Frequency - Max [Max]	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Includes	Contact Termination	Housing Color	Mating Cycles	Body Material	Number of Ports	Shield Termination	Connector Type	Insertion Loss	Connector Style	Cable Group	Fastening Type	Impedance
ITT Cannon, LLC A51-428-3188220	Gold	Free Hanging (In-Line) Right Angle	Beryllium Copper	4 GHz	Gold	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink	Solder	Gold	500	Brass	1	Crimp	Female Socket Plug	0.3 dB	SSMB	316 RG-174	Snap-On	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SSMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
