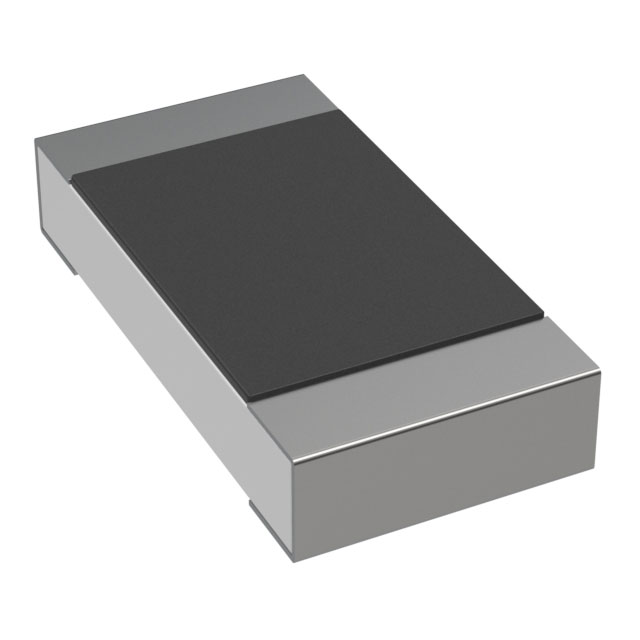

RS73G2BTTD4751C

Active

KOA Speer Electronics, Inc.

RES 4.75K OHM 0.25% 1/3W 1206

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RS73G2BTTD4751C

Active

KOA Speer Electronics, Inc.

RES 4.75K OHM 0.25% 1/3W 1206

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RS73G2BTTD4751C

Composition	Thick Film
Features	Automotive AEC-Q200, Moisture Resistant
Height - Seated (Max) [Max]	0.7 mm
Height - Seated (Max) [Max]	0.028 in
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric)
Power (Watts)	0.333 W
Power (Watts)	0.3333333333333333 W
Ratings	AEC-Q200
Resistance	4.75 kOhms
Size / Dimension [x]	0.126 "
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Supplier Device Package	1206
Temperature Coefficient	50 ppm/°C
Tolerance	0.25 %

RS73G2B Series

...

Part	Features	Package / Case	Tolerance	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Terminations	Composition	Power (Watts)	Power (Watts)	Resistance	Temperature Coefficient	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ratings
KOA Speer Electronics, Inc. RS73G2BTTD7500F	Automotive AEC-Q200 Moisture Resistant	1206 (3216 Metric)	1 %	1206	155 °C	-55 °C	0.063 in	1.6 mm	0.126 "	3.2 mm	2	Thick Film	0.333 W	0.3333333333333333 W	750 Ohms	50 ppm/°C	0.7 mm	0.028 in	AEC-Q200
KOA Speer Electronics, Inc. RS73G2BTTD4751C	Automotive AEC-Q200 Moisture Resistant	1206 (3216 Metric)	0.25 %	1206	155 °C	-55 °C	0.063 in	1.6 mm	0.126 "	3.2 mm	2	Thick Film	0.333 W	0.3333333333333333 W	4.75 kOhms	50 ppm/°C	0.7 mm	0.028 in	AEC-Q200
KOA Speer Electronics, Inc. RS73G2BTTD3742B	Automotive AEC-Q200 Moisture Resistant	1206 (3216 Metric)	0.1 %	1206	155 °C	-55 °C	0.063 in	1.6 mm	0.126 "	3.2 mm	2	Thick Film	0.333 W	0.3333333333333333 W	37.4 kOhms	50 ppm/°C	0.7 mm	0.028 in	AEC-Q200
KOA Speer Electronics, Inc. RS73G2BTTD9311F	Automotive AEC-Q200 Moisture Resistant	1206 (3216 Metric)	1 %	1206	155 °C	-55 °C	0.063 in	1.6 mm	0.126 "	3.2 mm	2	Thick Film	0.333 W	0.3333333333333333 W		50 ppm/°C	0.7 mm	0.028 in	AEC-Q200
KOA Speer Electronics, Inc. RS73G2BTTD8202F	Automotive AEC-Q200 Moisture Resistant	1206 (3216 Metric)	1 %	1206	155 °C	-55 °C	0.063 in	1.6 mm	0.126 "	3.2 mm	2	Thick Film	0.333 W	0.3333333333333333 W	82 kOhms	50 ppm/°C	0.7 mm	0.028 in	AEC-Q200
KOA Speer Electronics, Inc. RS73G2BTTD3741B	Automotive AEC-Q200 Moisture Resistant	1206 (3216 Metric)	0.1 %	1206	155 °C	-55 °C	0.063 in	1.6 mm	0.126 "	3.2 mm	2	Thick Film	0.333 W	0.3333333333333333 W	3.74 kOhms	50 ppm/°C	0.7 mm	0.028 in	AEC-Q200
KOA Speer Electronics, Inc. RS73G2BTTD3323B	Automotive AEC-Q200 Moisture Resistant	1206 (3216 Metric)	0.1 %	1206	155 °C	-55 °C	0.063 in	1.6 mm	0.126 "	3.2 mm	2	Thick Film	0.333 W	0.3333333333333333 W	332 kOhms	50 ppm/°C	0.7 mm	0.028 in	AEC-Q200
KOA Speer Electronics, Inc. RS73G2BTTD4641C	Automotive AEC-Q200 Moisture Resistant	1206 (3216 Metric)	0.25 %	1206	155 °C	-55 °C	0.063 in	1.6 mm	0.126 "	3.2 mm	2	Thick Film	0.333 W	0.3333333333333333 W	4.64 kOhms	50 ppm/°C	0.7 mm	0.028 in	AEC-Q200
KOA Speer Electronics, Inc. RS73G2BTTD7154D	Automotive AEC-Q200 Moisture Resistant	1206 (3216 Metric)		1206	155 °C	-55 °C	0.063 in	1.6 mm	0.126 "	3.2 mm	2	Thick Film	0.333 W	0.3333333333333333 W	7.15 MOhms	50 ppm/°C	0.7 mm	0.028 in	AEC-Q200
KOA Speer Electronics, Inc. RS73G2BTTD1741C	Automotive AEC-Q200 Moisture Resistant	1206 (3216 Metric)	0.25 %	1206	155 °C	-55 °C	0.063 in	1.6 mm	0.126 "	3.2 mm	2	Thick Film	0.333 W	0.3333333333333333 W		50 ppm/°C	0.7 mm	0.028 in	AEC-Q200

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 0.14

Description

General part information

RS73G2B Series

4.75 kOhms ±0.25% 0.333W, 1/3W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200, Moisture Resistant Thick Film
