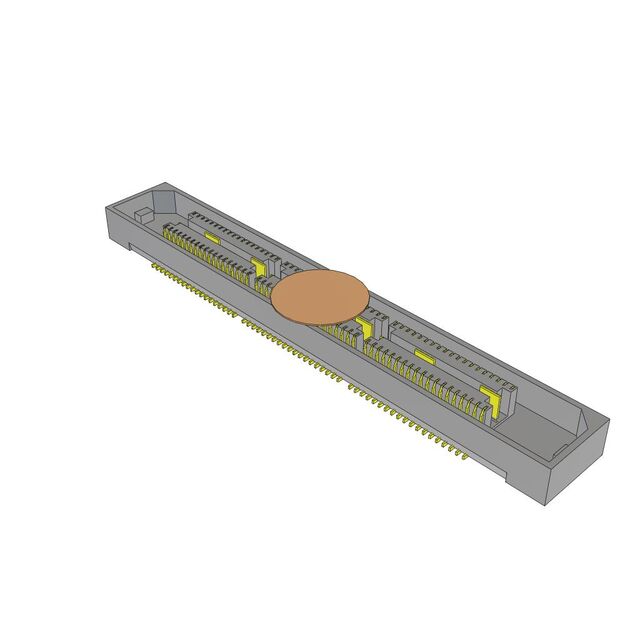

MIS-057-01-L-D-K-TR

Active

Samtec Inc.

0.635 MM MIXED TECHNOLOGY HIGH-S

Search across all available documentation for this part.

Active

Samtec Inc.

0.635 MM MIXED TECHNOLOGY HIGH-S

Technical Specifications

Parameters and characteristics for this part

Specification	MIS-057-01-L-D-K-TR

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide, Ground Bus (Plane), Pick and Place
Height Above Board	0.143 in
Height Above Board	3.63 mm
Mated Stacking Heights	22 mm, 18.75 mm, 16 mm, 11 mm
Mounting Type	Surface Mount
Number of Positions	114
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

Part	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Features	Mounting Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Mated Stacking Heights	Number of Rows	Number of Positions
Samtec Inc. MIS-057-01-L-D-K-TR	0.143 in	3.63 mm	0.64 mm	0.025 in	Board Guide Ground Bus (Plane) Pick and Place	Surface Mount	Socket Center Strip Contacts	10 Áin	0.25 Ám	Gold	11 mm 16 mm 18.75 mm 22 mm	2	114

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

114 Position Connector Socket, Center Strip Contacts Surface Mount Gold
