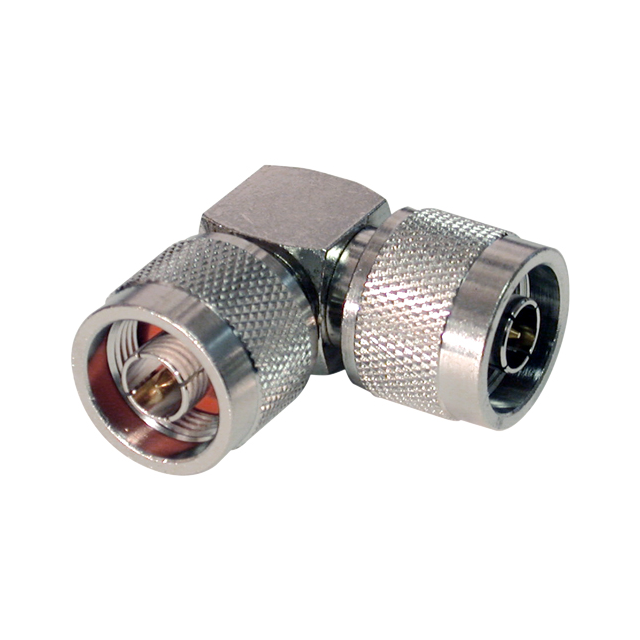

RFN-1054-AV

Active

RF Industries

N MALE-N MALE; R/A

Search across all available documentation for this part.

Active

RF Industries

N MALE-N MALE; R/A

Technical Specifications

Parameters and characteristics for this part

Specification	RFN-1054-AV

Adapter Series	N to N
Adapter Type	Plug to Plug
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End)	Male Pin, N Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-65 ░C
Style	Right Angle

Part	Style	Dielectric Material	Convert From (Adapter End)	Center Gender	Adapter Series	Center Contact Plating	Conversion Type	Body Finish	Adapter Type	Convert To (Adapter End)	Frequency - Max [Max]	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Mounting Type	Impedance
RF Industries RFN-1054-AV	Right Angle	Polytetrafluoroethylene (PTFE)	N Plug Male Pin	Male to Male	N to N	Gold	Same Series	Nickel	Plug to Plug	Male Pin N Plug	11 GHz	Brass	-65 ░C	85 °C	Brass	Free Hanging (In-Line) Right Angle	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Plug, Male Pin To N Plug, Male Pin 50 Ohms
