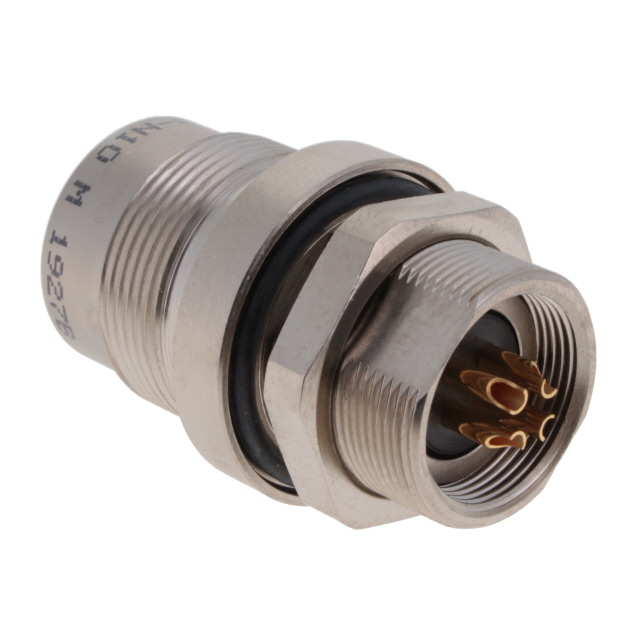

500-7018-N10

Active

Cinch Connectivity Solutions Trompeter

CONN RCPT MALE 4P SOLDER CUP

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN RCPT MALE 4P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	500-7018-N10

Applications	Industrial
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Nickel
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Fastening Type	Push-Pull
Ingress Protection	Environment Sealed
Insert Material	Molybdenum Disulfide (MoS2), Polyamide (PA66), Nylon 6/6
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Metal
Shell Material	Brass
Shell Size - Insert	10-4
Shielding	Unshielded

Part	Number of Positions	Current Rating (Amps)	Connector Type	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Primary Material	Mounting Feature	Shielding	Color	Applications	Insert Material	Contact Material	Orientation	Ingress Protection	Shell Size - Insert	Fastening Type
Cinch Connectivity Solutions Trompeter 500-7018-N10	4	13 A	Male Pins Receptacle	Nickel	85 °C	-20 C	Brass	Metal	Bulkhead - Rear Side Nut	Unshielded	Silver	Industrial	Molybdenum Disulfide (MoS2) Nylon 6/6 Polyamide (PA66)	Copper Alloy	Keyed	Environment Sealed	10-4	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder Cup
