LTV-844

Active

Diodes Inc

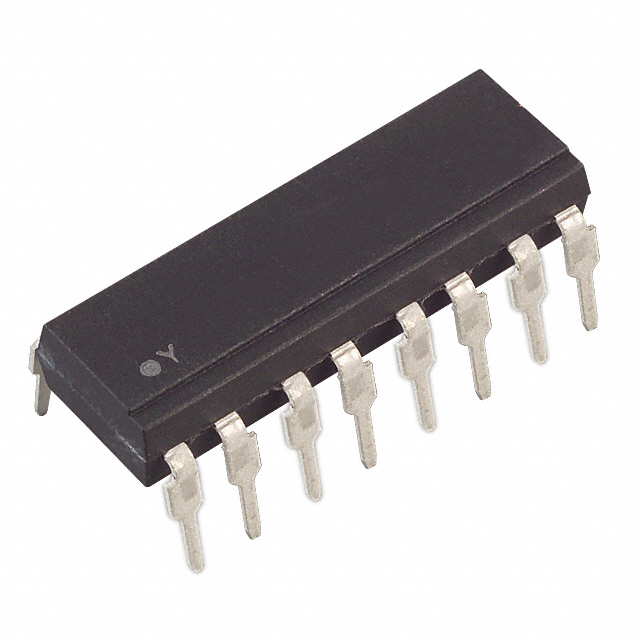

OPTOISOLTR 5KV 4CH TRANS 16-DIP

Search across all available documentation for this part.

Active

Diodes Inc

OPTOISOLTR 5KV 4CH TRANS 16-DIP

Technical Specifications

Parameters and characteristics for this part

Specification	LTV-844

Current - DC Forward (If) (Max)	50 mA
Current - Output / Channel	50 mA
Current Transfer Ratio (Max)	300 %
Current Transfer Ratio (Min) [Min]	20 %
Mounting Type	Through Hole
Number of Channels	4
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-30 ░C
Output Type	1.81 mOhm
Package / Case	0.3 in
Package / Case	16-DIP
Package / Case	7.62 mm
Rise / Fall Time (Typ) [custom]	3 µs
Rise / Fall Time (Typ) [custom]	4 µs
Supplier Device Package	16-DIP
Vce Saturation (Max)	200 mV
Voltage - Output (Max) [Max]	35 V

Part	Number of Channels	Current - Output / Channel	Current Transfer Ratio (Max)	Output Type	Vce Saturation (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Package / Case	Mounting Type	Voltage - Output (Max) [Max]	Current - DC Forward (If) (Max)	Current Transfer Ratio (Min) [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Output Type	Vce Saturation (Max)	Package / Case	Package / Case
Diodes Inc LTV-8441S	4	80 mA	7500 %	Darlington	1 V	100 °C	-30 ░C	16-SMD	16-SMD Gull Wing	Surface Mount	35 V	50 mA	600 %	60 µs	53 µs
Diodes Inc LTV-844S-TA1	4	50 mA	300 %			100 °C	-30 ░C	16-SMD	16-SMD Gull Wing	Surface Mount	35 V	50 mA	20 %	4 µs	3 µs	1.81 mOhm	200 mV
Diodes Inc LTV-844	4	50 mA	300 %			100 °C	-30 ░C	16-DIP	16-DIP	Through Hole	35 V	50 mA	20 %	4 µs	3 µs	1.81 mOhm	200 mV	0.3 in	7.62 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Transistor Output 5000Vrms 4 Channel 16-DIP
