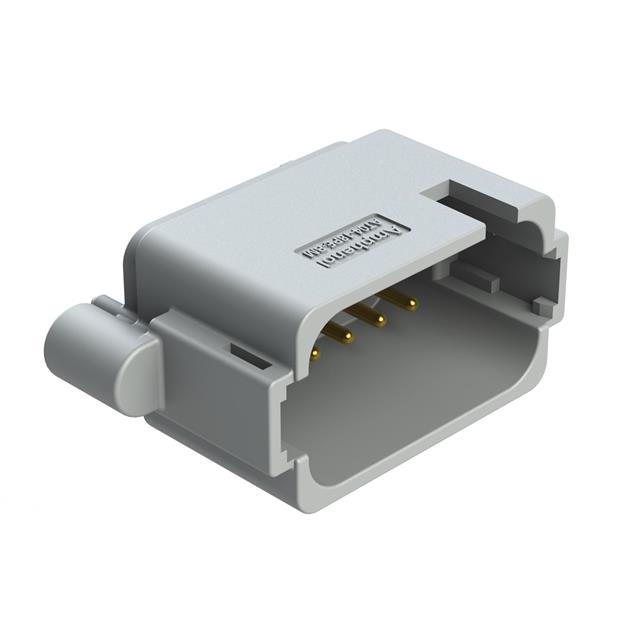

AT04-18PE-BM11
ActiveAmphenol Sine Systems Corp
18 POSITION, PCB RECEPTACLE, FLA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AT04-18PE-BM11
ActiveAmphenol Sine Systems Corp
18 POSITION, PCB RECEPTACLE, FLA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AT04-18PE-BM11 |
|---|---|
| Applications | Industrial, General Purpose, Automotive |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Length - Post | 0.128 " |
| Contact Length - Post | 3.25 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 13 A |
| Fastening Type | Latch Holder |
| Features | Board Guide, Mounting Flange |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insulation Color | Gray |
| Insulation Height | 1.01 in |
| Insulation Height | 25.65 mm |
| Insulation Material | Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 18 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.184 in |
| Pitch - Mating | 4.68 mm |
| Row Spacing - Mating | 4.83 mm |
| Row Spacing - Mating | 0.19 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 200 | $ 8.95 | |
Description
General part information
AT04-18PE Series
Connector Header Through Hole 18 position 0.184" (4.68mm)
