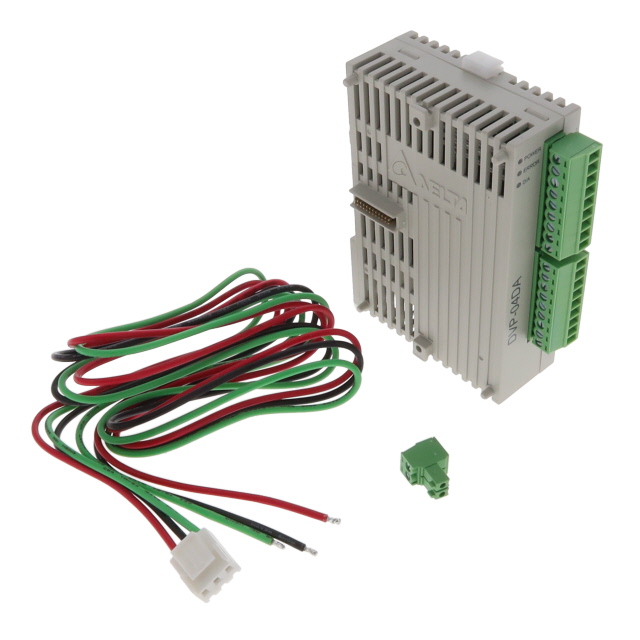

DVP04DA-S

Obsolete

Delta Electronics/Industrial Automation

OUTPUT MOD 4 ANALOG 100-240V/24V

Search across all available documentation for this part.

Obsolete

Delta Electronics/Industrial Automation

OUTPUT MOD 4 ANALOG 100-240V/24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DVP04DA-S	DVP04 Series

Approval Agency	cULus, CE	cULus, CE
Features	-	RTD
For Use With/Related Products	DVP-S Series	DVP-EH3 Series, DVP-S Series
Mounting Type	DIN Rail	DIN Rail
Number of Inputs and Type	-	4 - Analog
Number of Outputs and Type [custom]	4	4
Number of Outputs and Type [custom]	Analog	Analog
Termination Style	Pluggable Screw Terminal	Pluggable Screw Terminal
Type	Output Module	Input Module, Output Module
Voltage - Supply	24 VDC	24 VDC
Voltage - Supply [Max]	240 VAC	240 VAC
Voltage - Supply [Min]	100 VAC	100 VAC

INPUT MOD 4 ANALOG 100-240V/24V

Part	Mounting Type	Number of Inputs and Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - Supply	For Use With/Related Products	Approval Agency	Type	Features	Termination Style	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]
Delta Electronics/Industrial Automation DVP04AD-H2	DIN Rail	4 - Analog	100 VAC	240 VAC	24 VDC	DVP-EH3 Series	CE, cULus	Input Module
Delta Electronics/Industrial Automation DVP04PT-S	DIN Rail	4 - Analog	100 VAC	240 VAC	24 VDC	DVP-S Series	CE, cULus		RTD	Pluggable Screw Terminal
Delta Electronics/Industrial Automation DVP04AD-SL	DIN Rail	4 - Analog	100 VAC	240 VAC	24 VDC	DVP-S Series	CE, cULus	Input Module		Pluggable Screw Terminal
Delta Electronics/Industrial Automation DVP04DA-S	DIN Rail		100 VAC	240 VAC	24 VDC	DVP-S Series	CE, cULus	Output Module		Pluggable Screw Terminal	4	Analog
Delta Electronics/Industrial Automation DVP04DA-SL	DIN Rail		100 VAC	240 VAC	24 VDC	DVP-S Series	CE, cULus	Output Module		Pluggable Screw Terminal	4	Analog

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Output Module DIN Rail 100 ~ 240VAC, 24VDC

Technical documentation and resources
