RTS712N4P03
ActiveAmphenol Sine Systems Corp

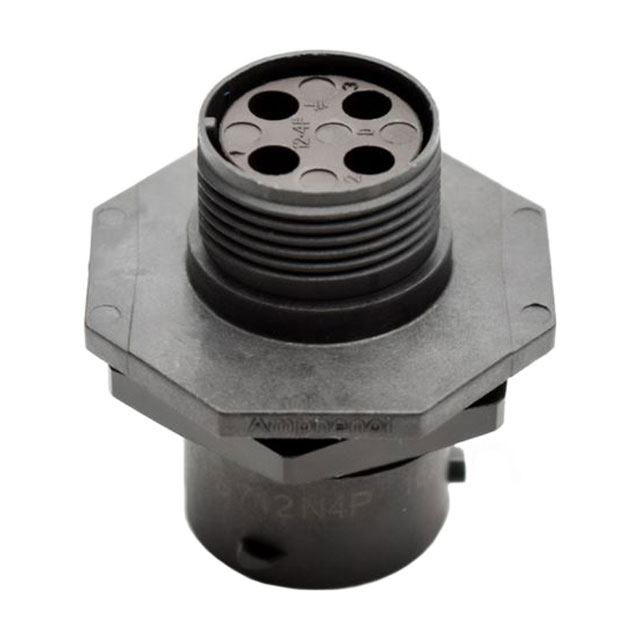

CONN RCPT HSNG MALE 4POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
Documentsecomate-Family-Flyer-2019
RTS712N4P03
ActiveAmphenol Sine Systems Corp
CONN RCPT HSNG MALE 4POS PNL MNT
Deep-Dive with AI
Documentsecomate-Family-Flyer-2019
Technical Specifications
Parameters and characteristics for this part
| Specification | RTS712N4P03 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Housing Color | Black |
| Includes | 1 O-Ring, 1 Gasket, 1 Nut, 1 Connector |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Size - Insert | 12-4 |
| Shielding | Unshielded |
| Type | For Male Pins |
RTS712 Series
| Part | Contact Size | Contact Shape | Number of Positions | Connector Type | Features | Fastening Type | Insert Material | Shell Size - Insert | Note | Contact Type | Material Flammability Rating | Shielding | Orientation | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Mounting Feature | Type | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | 16 | Circular | 8 | Receptacle Housing | Backshell | Bayonet Lock | Thermoplastic | 12-8 | Contacts Not Included | Crimp | UL94 V-0 | Unshielded | N | IP67 IP69K | 125 °C | -40 °C | Black | Bulkhead - Front Side Nut | For Male Pins | 1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal |
Amphenol Sine Systems Corp | 20 | Circular | 10 | Receptacle Housing | Bayonet Lock | Thermoplastic | Contacts Not Included | Crimp | UL94 V-0 | Unshielded | N | IP67 IP69K | 125 °C | -40 °C | Black | Bulkhead - Front Side Nut | For Male Pins | 1 Connector 1 Gasket 1 Nut 1 O-Ring | ||
Amphenol Sine Systems Corp | 16 | Circular | 4 | Receptacle Housing | Bayonet Lock | Thermoplastic | 12-4 | Contacts Not Included | Crimp | UL94 V-0 | Unshielded | N | IP67 IP69K | 125 °C | -40 °C | Black | Bulkhead - Front Side Nut | For Female Sockets | 1 Connector 1 Gasket 1 Nut 1 O-Ring | |
Amphenol Sine Systems Corp | 16 | Circular | Receptacle Housing | Backshell | Bayonet Lock | Thermoplastic | 12-3 | Contacts Not Included | Crimp | UL94 V-0 | Unshielded | N | IP67 IP69K | 125 °C | -40 °C | Black | Bulkhead - Front Side Nut | For Male Pins | 1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal | |
Amphenol Sine Systems Corp | 16 | Circular | Receptacle Housing | Bayonet Lock | Thermoplastic | 12-3 | Contacts Not Included | Crimp | UL94 V-0 | Unshielded | N | IP67 IP69K | 125 °C | -40 °C | Black | Bulkhead - Front Side Nut | For Male Pins | 1 Connector 1 Gasket 1 Nut 1 O-Ring | ||
Amphenol Sine Systems Corp | 16 | Circular | 8 | Receptacle Housing | Bayonet Lock | Thermoplastic | 12-8 | Contacts Not Included | Crimp | UL94 V-0 | Unshielded | N | IP67 IP69K | 125 °C | -40 °C | Black | Bulkhead - Front Side Nut | For Female Sockets | 1 Connector 1 Gasket 1 Nut 1 O-Ring | |
Amphenol Sine Systems Corp | 16 | Circular | Receptacle Housing | Bayonet Lock | Thermoplastic | 12-3 | Contacts Not Included | Crimp | UL94 V-0 | Unshielded | N | IP67 IP69K | 125 °C | -40 °C | Black | Bulkhead - Front Side Nut | For Female Sockets | 1 Connector 1 Gasket 1 Nut 1 O-Ring | ||
Amphenol Sine Systems Corp | 20 | Circular | 10 | Receptacle Housing | Bayonet Lock | Thermoplastic | Contacts Not Included | Crimp | UL94 V-0 | Unshielded | N | IP67 IP69K | 125 °C | -40 °C | Black | Bulkhead - Front Side Nut | For Female Sockets | 1 Connector 1 Gasket 1 Nut 1 O-Ring | ||
Amphenol Sine Systems Corp | 16 | Circular | 4 | Receptacle Housing | Bayonet Lock | Thermoplastic | 12-4 | Contacts Not Included | Crimp | UL94 V-0 | Unshielded | N | IP67 IP69K | 125 °C | -40 °C | Black | Bulkhead - Front Side Nut | For Male Pins | 1 Connector 1 Gasket 1 Nut 1 O-Ring |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.68 | |
| 10 | $ 7.69 | |||
| 25 | $ 7.40 | |||
| 50 | $ 7.10 | |||
| 200 | $ 6.95 | |||
Description
General part information
RTS712 Series
4 (3 + PE) Position Circular Connector Receptacle Housing Panel Mount
