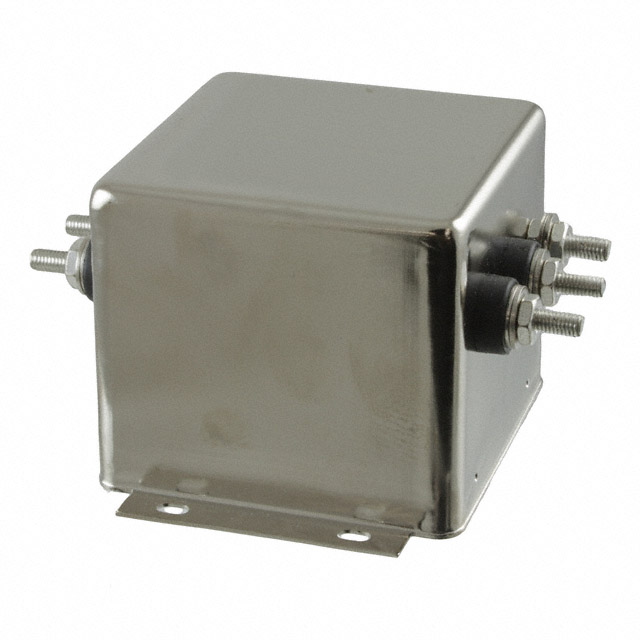

30VSK6C
ActiveTE Connectivity Raychem Cable Protection
120V, 50/60HZ, SINGLE PHASE EMI FILTER
Deep-Dive with AI
Search across all available documentation for this part.
30VSK6C
ActiveTE Connectivity Raychem Cable Protection
120V, 50/60HZ, SINGLE PHASE EMI FILTER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 30VSK6C |
|---|---|
| Applications | General Purpose |
| Approval Agency | VDE, CSA, UR |
| Configuration | Single Stage |
| Current | 30 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Inductance | 1.73 mH |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -10 °C |
| Termination Style | Threaded Post (10-32) |
| Voltage - Rated AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 59.29 | |
Description
General part information
30V Series
Single Phase EMC/EMI Line Filter 30 A 250V 50/60Hz Single Stage Threaded Post (10-32)
