172129RP

Active

Amphenol RF

CONN RP-N JACK STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN RP-N JACK STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	172129RP

Body Finish	White Bronze
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	RP-N Type
Connector Type	Male Pin, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms

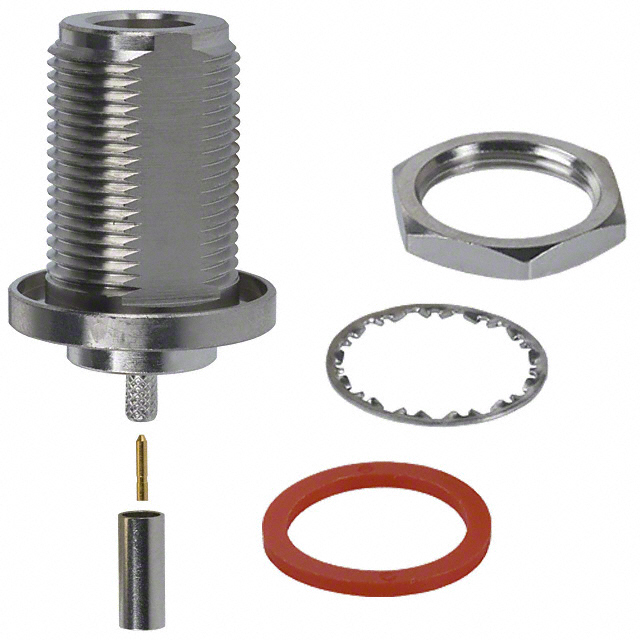

Includes	1 Lockwasher, 1 Contact, 1 Nut, 1 Ferrule, 1 Gasket, 1 Connector
Ingress Protection	Weatherproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1500 V

Part	Ingress Protection	Connector Type	Connector Style	Contact Termination	Center Contact Material	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Body Material	Impedance	Number of Ports	Body Finish	Shield Termination	Housing Color	Insertion Loss	Center Contact Plating	Cable Group	Dielectric Material	Frequency - Max [Max]	Mounting Feature	Voltage Rating
Amphenol RF 172129RP	Weatherproof	Jack Male Pin	RP-N Type	Crimp	Phosphor Bronze	500	-65 ░C	165 °C	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut	Brass	50 Ohms	1	White Bronze	Crimp	Silver	0.15 dB	Gold	188 188A 316 LMR-100 M17/119-RG174 RG-174	Polytetrafluoroethylene (PTFE)	11 GHz	Bulkhead - Front Side Nut	1500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RP-N Type Connector Jack, Male Pin 50 Ohms Panel Mount Crimp

Technical documentation and resources

No documents available
