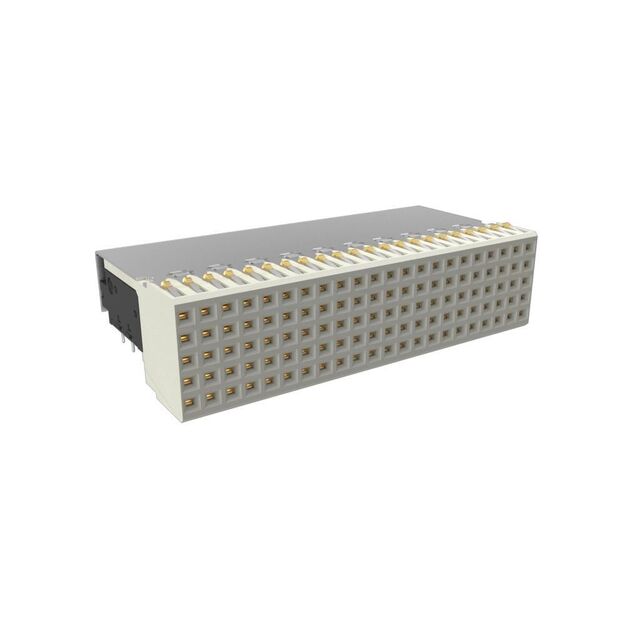

Specification	10155111-101LF

Connector Style	B 22
Connector Type	Receptacle, Female Sockets
Connector Usage	Backplane
Contact Finish	Gold, Gold, GXT™
Current Rating	1.5 A
Features	Shielded
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Positions	110
Number of Positions Loaded	All
Number of Rows	5
Operating Temperature (Max)	175 °C
Operating Temperature (Min)	-55 °C
Pitch	0.079 in
Termination	Press-Fit
Voltage Rating	750 VDC

10155111 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Voltage Rating	Features	Number of Positions	Connector Style	Number of Rows	Number of Positions Loaded	Termination	Contact Finish	Connector Usage	Pitch	Mounting Type	Connector Type
Amphenol ICC (FCI) 10155111-102LF	175 °C	-55 °C	1.5 A	750 VDC	Shielded	110	B 22	5	All	Press-Fit	Gold Gold GXT™	Backplane	0.079 in	Board Edge Right Angle Through Hole	Female Sockets Receptacle
Amphenol ICC (FCI) 10155111-101LF	175 °C	-55 °C	1.5 A	750 VDC	Shielded	110	B 22	5	All	Press-Fit	Gold Gold GXT™	Backplane	0.079 in	Board Edge Right Angle Through Hole	Female Sockets Receptacle
