POWERSTEP01

Active

STMicroelectronics

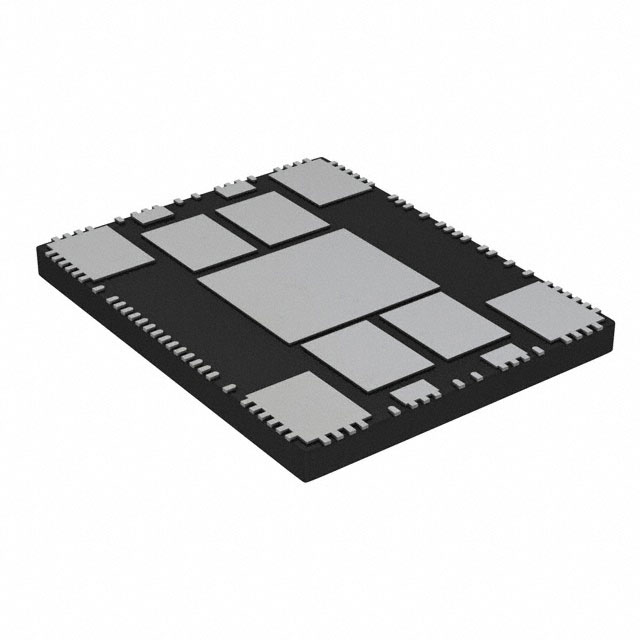

IC MTR DRV BIPLR 3.3/5V 89VFQFPN

Search across all available documentation for this part.

Active

STMicroelectronics

IC MTR DRV BIPLR 3.3/5V 89VFQFPN

Technical Specifications

Parameters and characteristics for this part

Specification	POWERSTEP01

Applications	General Purpose
Current - Output	10 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	SPI
Motor Type - Stepper	Bipolar
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Half Bridge (4)
Package / Case	89-PowerVQFN
Step Resolution [Max]	0.0078125
Step Resolution [Min]	1
Supplier Device Package	89-VFQFPN (11x14)
Technology	Power MOSFET
Voltage - Load	85 V
Voltage - Supply	5 V, 3.3 V

Part	Motor Type - Stepper	Supplier Device Package	Voltage - Load	Voltage - Supply	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Mounting Type	Function	Package / Case	Current - Output	Output Configuration	Applications	Step Resolution [Max]	Step Resolution [Min]
STMicroelectronics POWERSTEP01	Bipolar	89-VFQFPN (11x14)	85 V	3.3 V 5 V	Power MOSFET	150 °C	-40 °C	SPI	Surface Mount	Driver - Fully Integrated Control and Power Stage	89-PowerVQFN	10 A	Half Bridge (4)	General Purpose	0.0078125	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar Motor Driver Power MOSFET SPI 89-VFQFPN (11x14)
