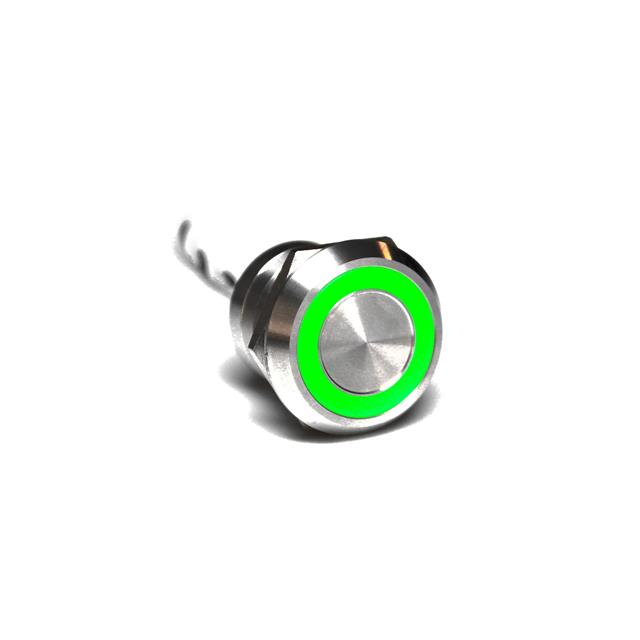

MC25MCSGN
ActiveBULGIN LIMITED
SWITCH CAPACITIVE DPST ON-MOM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MC25MCSGN
ActiveBULGIN LIMITED
SWITCH CAPACITIVE DPST ON-MOM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MC25MCSGN |
|---|---|
| Actuator Type | Flush, Button, Round |
| Circuit | SPST-NC |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 500 mA |
| Electrical Life | 50000000 Cycles |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 12 VDC |
| Ingress Protection | IP68, IP69K |
| Mechanical Life | 50000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 25.2 mm |
| Switch Function | On-Mom |
| Termination Style | Wire Leads |
| Type | Capacitive, Illuminated |
| Voltage Rating - DC | 24 V |
MC25MCS Series
| Part | Mechanical Life | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Illumination Voltage (Nominal) | Electrical Life | Actuator Type | Ingress Protection | Color - Actuator/Cap | Operating Temperature [Max] | Operating Temperature [Min] | Illumination Type, Color | Switch Function | Voltage Rating - DC | Mounting Type | Type | Termination Style | Circuit | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED | 50000000 Cycles | 500 mA | 25.2 mm | 12 VDC | 50000000 Cycles | Button Flush Round | IP68 IP69K | Silver | 55 °C | -25 °C | LED Red | On-Mom | 24 V | Panel Mount Front | Capacitive Illuminated | Wire Leads | SPST-NC | |
BULGIN LIMITED | 50000000 Cycles | 500 mA | 25.2 mm | 50000000 Cycles | Button Flush Round | IP68 IP69K | Silver | 55 °C | -25 °C | Green/Red LED | On-Mom | 12 V | Panel Mount Front | Capacitive Illuminated | Wire Leads | SPST-NC | No Marking | |
BULGIN LIMITED | 50000000 Cycles | 500 mA | 25.2 mm | 50000000 Cycles | Button Flush Round | IP68 IP69K | Silver | 55 °C | -25 °C | Green/Red LED | On-Mom | 12 V | Panel Mount Front | Capacitive Illuminated | Wire Leads | SPST-NC | No Marking | |
BULGIN LIMITED | 50000000 Cycles | 500 mA | 25.2 mm | 12 VDC | 50000000 Cycles | Button Flush Round | IP68 IP69K | Silver | 55 °C | -25 °C | Green LED | On-Mom | 24 V | Panel Mount Front | Capacitive Illuminated | Wire Leads | SPST-NC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 60 | $ 44.69 | |
Description
General part information
MC25MCS Series
Pushbutton Switch SPST-NC Capacitive, Illuminated Panel Mount, Front
