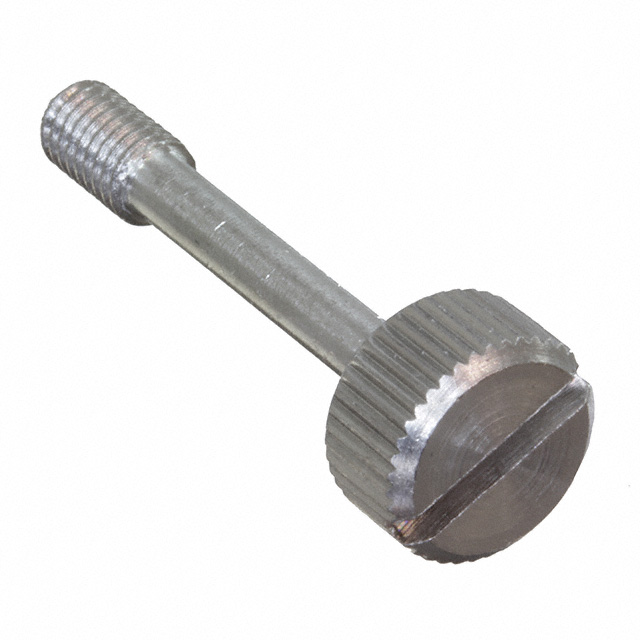

0171-SS

Active

RAF Electronic Hardware

7/16HD X 1 1/4 X 10-32 THD

Search across all available documentation for this part.

Active

RAF Electronic Hardware

7/16HD X 1 1/4 X 10-32 THD

Technical Specifications

Parameters and characteristics for this part

7/16HD X 1 1/4 X 10-32 THD

Part	Material	Head Diameter [diameter]	Head Diameter [diameter]	Type	Length - Overall [x]	Length - Overall [x]	Thread Size	Length - Below Head [x]	Length - Below Head [x]	Head Height [z]	Head Height [z]	Head Height [z]	Screw Head Type	Drive Type
RAF Electronic Hardware 0171-SS	Stainless Steel	11.11 mm	0.438 "	Panel Screw	1.5 in	38.1 mm	#10-32	31.75 mm	1.25 in	0.25 in	6.35 mm	0.25 in	Knob	Slotted

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

#10-32 Knob Panel Screw Slotted Drive Stainless Steel

Technical documentation and resources

No documents available
