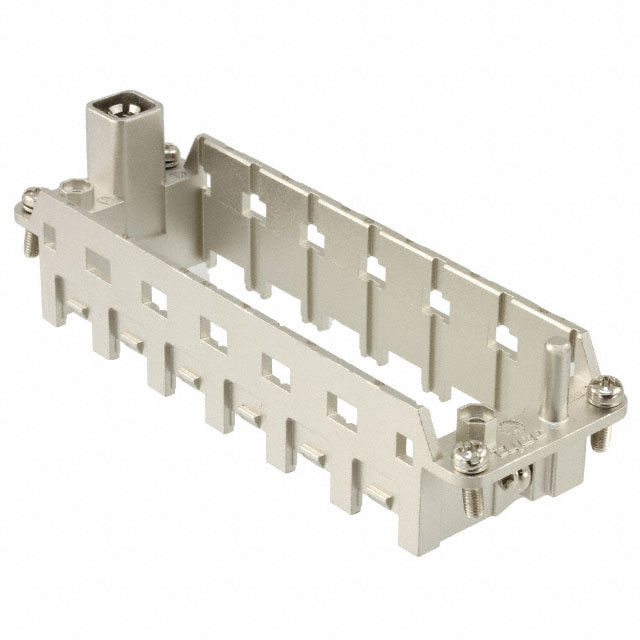

1103250-1
ActiveTE Connectivity AMP Connectors
FRAME FIXED SZ8 FOR 6MOD
Deep-Dive with AI
Search across all available documentation for this part.
1103250-1
ActiveTE Connectivity AMP Connectors
FRAME FIXED SZ8 FOR 6MOD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1103250-1 | 1103250 Series |
|---|---|---|
| Frame Type | Docking, Carrier Shell Frame | Docking, Carrier Shell Frame |
| Gender | Male, Female | Male, Female |
| Includes | 5 Screws, 1 Frame | 5 Screws, 1 Frame |
| Material | Zinc | Zinc |
| Number of Modules | 6 | 6 |
| Size | 8 | 4 - 8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 10.47 | |
| 50 | $ 9.68 | |||
| 400 | $ 9.31 | |||
| 2000 | $ 8.94 | |||
1103250 Series
FRAME FIXED SZ8 FOR 6MOD
| Part | Includes | Frame Type | Gender | Material | Number of Modules | Size |
|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1103250-1 | 1 Frame, 5 Screws | Carrier Shell Frame, Docking | Female, Male | Zinc | 6 | 8 |
TE Connectivity AMP Connectors 1103250-6 | 1 Frame, 5 Screws | Carrier Shell Frame, Docking | Female, Male | Zinc | 4 | |
TE Connectivity AMP Connectors 1103250-2 | 1 Frame, 5 Screws | Carrier Shell Frame, Docking | Female, Male | Zinc | 6 | 8 |
TE Connectivity AMP Connectors 1103250-5 | 1 Frame, 5 Screws | Carrier Shell Frame, Docking | Female, Male | Zinc | 4 |
Description
General part information
1103250 Series
6 Module Female/Male Heavy Duty Docking, Carrier Shell Frame Size 8
Documents
Technical documentation and resources
No documents available
