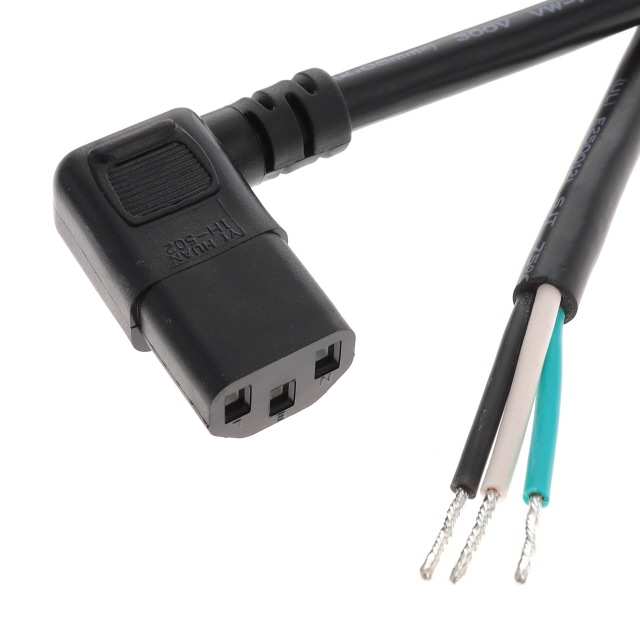

AK500/14-RA-6-2

Active

Assmann WSW Components

CORD 14AWG IEC320 RA - CBL 6.56'

Search across all available documentation for this part.

Active

Assmann WSW Components

CORD 14AWG IEC320 RA - CBL 6.56'

Technical Specifications

Parameters and characteristics for this part

Specification	AK500/14-RA-6-2

1st Connector	Right Angle, IEC 320-C13
2nd Connector	Cable
Approval Agency Marking	UL
Approved Countries	United States
Color	Black
Cord Type	SJT
Current Rating (Amps)	18 A
Length [x]	2 m
Length [x]	6.56 ft
Number of Conductors	3
Operating Temperature	60 °C
Shielding	Unshielded
Style	Female Sockets (Slots) to Leads
Voltage Rating	250 VDC
Wire Gauge	13.5 AWG

Part	1st Connector	Number of Conductors	Cord Type	Operating Temperature	Length [x]	Length [x]	Approved Countries	Approval Agency Marking	Wire Gauge	Voltage Rating	Current Rating (Amps)	Shielding	Style	2nd Connector	Color
Assmann WSW Components AK500/14-OE-7-1	NEMA 5-15P	3	SJT	105 C	1 m	3.28 ft	United States	UL	13.5 AWG	125 VDC	18 A	Shielded	Male Pins (Blades) to Leads	Cable	Black
Assmann WSW Components AK500/14-OE-7-2	NEMA 5-15P	3	SJT	105 C	2 m	6.56 ft	United States	UL	13.5 AWG	125 VDC	18 A	Shielded	Male Pins (Blades) to Leads	Cable	Black
Assmann WSW Components AK500/14-OE-5-1	NEMA 5-15P	3	SJT	60 °C	1 m	3.28 ft	United States	UL	13.5 AWG	125 VDC	18 A	Shielded	Male Pins (Blades) to Leads	Cable	Black
Assmann WSW Components AK500/14-OE-11-0.5	IEC 320-C14	3	SJT	60 °C	500 mm	1.64 ft	United States	UL	13.5 AWG	250 VDC	18 A	Unshielded	Female Sockets Male Pins		Black
Assmann WSW Components AK500/14-RA-6-2	IEC 320-C13 Right Angle	3	SJT	60 °C	2 m	6.56 ft	United States	UL	13.5 AWG	250 VDC	18 A	Unshielded	Female Sockets (Slots) to Leads	Cable	Black
Assmann WSW Components AK500/14-OE-7-0.5	NEMA 5-15P	3	SJT	105 C	500 mm	1.64 ft	United States	UL	13.5 AWG	125 VDC	18 A	Shielded	Male Pins (Blades) to Leads	Cable	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.56' (2.00m) Power Cord Black IEC 320-C13, Right Angle To Cable SJT
