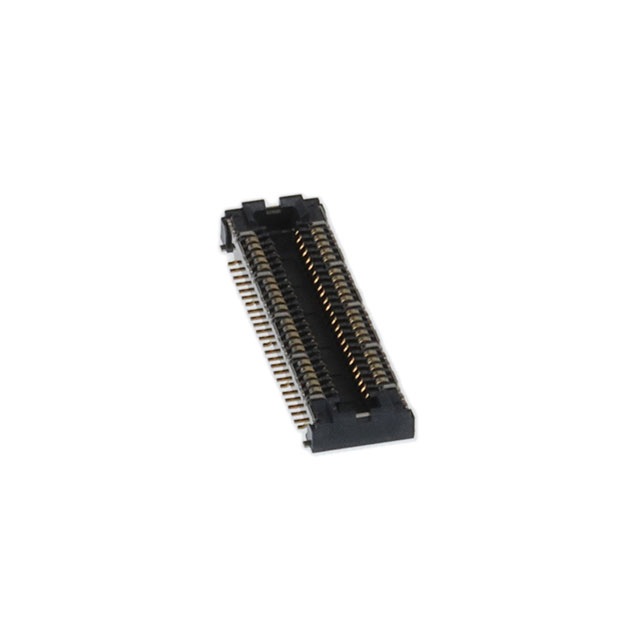

AXT3501F4

Active

Panasonic Electric Works

CONN SOCKET 50POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 50POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT3501F4

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention, Shielded
Height Above Board [z]	0.057 in
Height Above Board [z]	1.45 mm
Mated Stacking Heights	1.55 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Pitch [x]	Pitch [x]	Number of Positions	Contact Finish	Connector Type	Height Above Board [z]	Height Above Board [z]	Features	Number of Rows	Mounting Type	Mated Stacking Heights
Panasonic Electric Works AXT3501F4	0.016 in	0.4 mm	50	Gold	Outer Shroud Contacts Socket	0.057 in	1.45 mm	Shielded Solder Retention	2	Surface Mount	1.55 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold

Technical documentation and resources

No documents available
