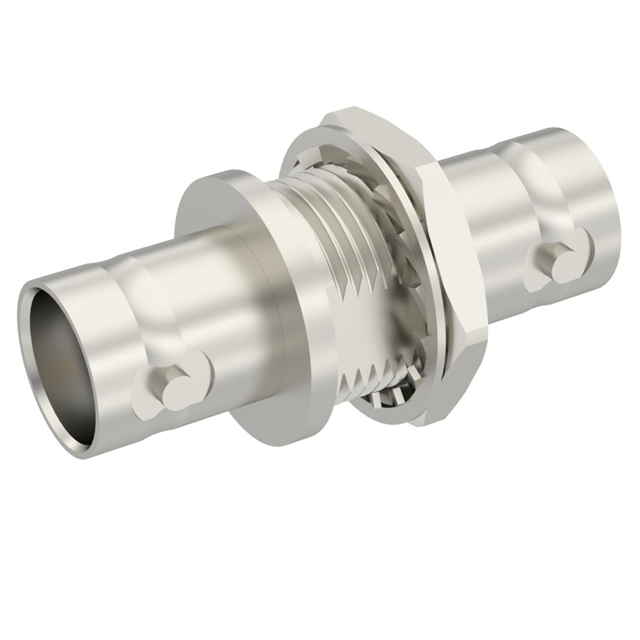

R141730000

Active

Radiall USA, Inc.

BNC / BULKHEAD FEMALE-FEMALE ADA

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC / BULKHEAD FEMALE-FEMALE ADA

Technical Specifications

Parameters and characteristics for this part

Specification	R141730000

Adapter Series	BNC to BNC
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Adapter Type	Body Material	Center Contact Plating	Adapter Series	Center Contact Material	Conversion Type	Mounting Feature	Impedance	Dielectric Material	Center Gender	Mating Cycles	Fastening Type	Convert To (Adapter End)	Convert From (Adapter End)	Frequency - Max [Max]	Style	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]
Radiall USA, Inc. R141730000W	Jack to Jack	Beryllium Copper	Gold	BNC to BNC	Beryllium Copper	Same Series	Bulkhead	50 Ohms	Polytetrafluoroethylene (PTFE)	Female to Female	500	Bayonet Lock	BNC Jack Female Socket	BNC Jack Female Socket	4 GHz	Straight	Nickel	-65 ░C	165 °C
Radiall USA, Inc. R141730000	Jack to Jack	Beryllium Copper	Gold	BNC to BNC	Beryllium Copper	Same Series	Bulkhead	50 Ohms	Polytetrafluoroethylene (PTFE)	Female to Female	500	Bayonet Lock	BNC Jack Female Socket	BNC Jack Female Socket	4 GHz	Straight	Nickel	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 50 Ohms
