A98000-021

Active

Omnetics

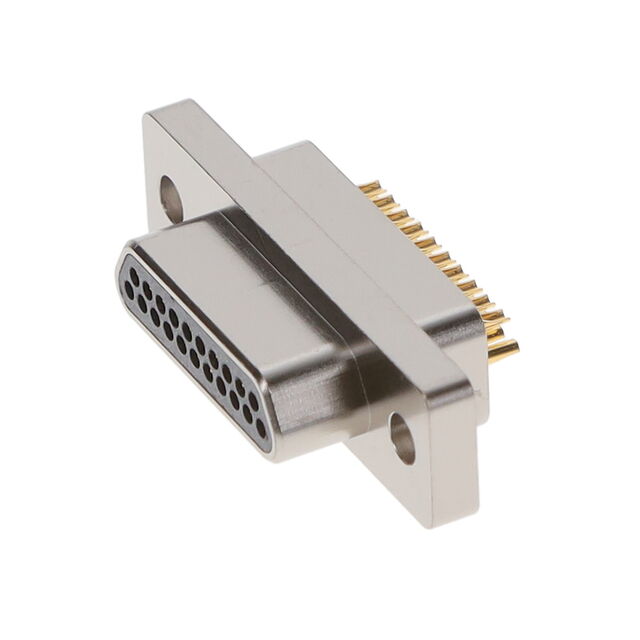

CONN MICRO-D PLUG 21POS SLDR CUP

Search across all available documentation for this part.

Active

Omnetics

CONN MICRO-D PLUG 21POS SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A98000-021	MMDP-021 Series

1st Connector	-	Plug, Male Pins
2nd Connector	-	Individual Wire Leads
Color	-	Multiple, Individual
Connector Style	Micro-D, D-Type	Micro-D, D-Type
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Form	Stamped	Stamped
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Signal	Signal
Current Rating (Amps)	3 A	3 A
Dielectric Material	Thermoplastic	Thermoplastic
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Length	-	457.2 mm
Length	-	1.5 ft
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	21	21
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Aluminum, Nickel Plated, Electroless	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout [custom]	0.05	0.05
Shell Size, Connector Layout [custom]	0.05	0.05
Shielding	-	Unshielded
Type	-	D-Type, Micro-D

CABLE ASSY D-MIC-D 21P 457.2MM

Part	Number of Positions	1st Connector	Shielding	Type	Length [x]	Length [x]	Color	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	2nd Connector	Shell Material, Finish	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Contact Material	Flange Feature	Contact Type	Dielectric Material	Mounting Type	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Type	Contact Form	Current Rating (Amps)
Omnetics A98100-021	21	Plug, Male Pins	Unshielded	D-Type, Micro-D	457.2 mm	1.5 ft	Individual, Multiple	50 µin	1.27 µm	Gold	Individual Wire Leads
Omnetics A98000-021	21							50 µin	1.27 µm	Gold		Aluminum, Electroless, Nickel Plated	-55 °C	125 °C	D-Type, Micro-D	Copper Alloy	Housing/Shell (Unthreaded)	Signal	Thermoplastic	Free Hanging (In-Line)	2	0.05	0.05	Male Pins, Plug	Stamped	3 A
