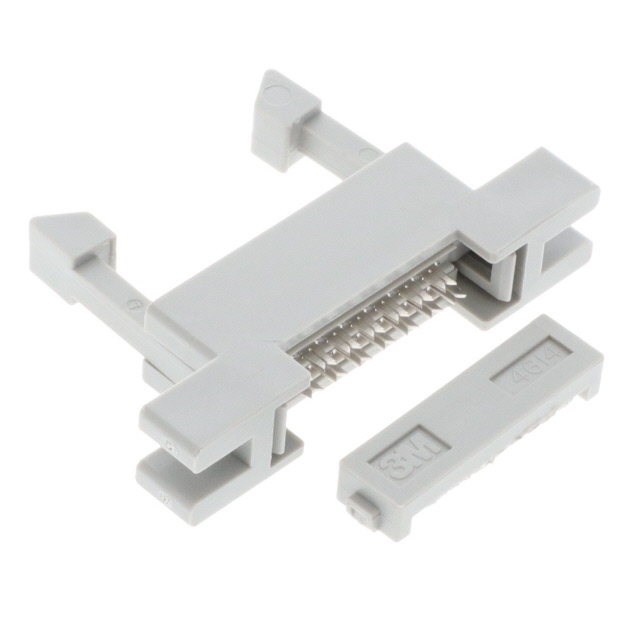

4614-6300

Active

3M (TC)

CONN PLUG 14P IDC 26-28AWG GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

4614-6300

Active

3M (TC)

CONN PLUG 14P IDC 26-28AWG GOLD

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4614-6300

Cable Termination	IDC
Color	Gray
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Long
Features	Feed Through
Mounting Type	Free Hanging (In-Line)
Number of Positions	14
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Gauge	Solid, Stranded
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	26 AWG
Wire Type	Discrete or Ribbon Cable

4614 Series

Part	Color	Number of Rows	Pitch [x]	Pitch [x]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Mounting Type	Cable Termination	Row Spacing [x]	Row Spacing	Features	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge	Wire Type	Contact Finish	Connector Type	Fastening Type
3M (TC) 4614-6000	Gray	2	2.54 mm	0.1 in	14	0.76 Ám	30 Áin	Male Pin	Free Hanging (In-Line)	IDC	0.1 in	2.54 mm	Feed Through	26 AWG	28 AWG	Solid Stranded	Discrete or Ribbon Cable	Gold	Plug
3M (TC) 4614-7000	Gray	2	2.54 mm	0.1 in	14	0.76 Ám	30 Áin	Male Pin	Free Hanging (In-Line)	IDC	0.1 in	2.54 mm	Closed End	26 AWG	28 AWG	Solid Stranded	Discrete or Ribbon Cable	Gold	Plug
3M (TC) 4614-6301	Gray	2	2.54 mm	0.1 in	14	0.76 Ám	30 Áin	Male Pin	Free Hanging (In-Line)	IDC	0.1 in	2.54 mm	Feed Through	26 AWG	28 AWG	Solid Stranded	Discrete or Ribbon Cable	Gold	Plug	Latch Lock/Eject Hooks Long
3M (TC) 4614-7001	Gray	2	2.54 mm	0.1 in	14	0.76 Ám	30 Áin	Male Pin	Free Hanging (In-Line)	IDC	0.1 in	2.54 mm	Closed End	26 AWG	28 AWG	Solid Stranded	Discrete or Ribbon Cable	Gold	Plug
3M (TC) 4614-6305	Gray	2	2.54 mm	0.1 in	14	0.76 Ám	30 Áin	Male Pin	Free Hanging (In-Line)	IDC	0.1 in	2.54 mm	Feed Through	26 AWG	28 AWG	Solid Stranded	Discrete or Ribbon Cable	Gold	Plug	Latch Lock/Eject Hooks Long
3M (TC) 4614-7301	Gray	2	2.54 mm	0.1 in	14	0.76 Ám	30 Áin	Male Pin	Free Hanging (In-Line)	IDC	0.1 in	2.54 mm	Closed End	26 AWG	28 AWG	Solid Stranded	Discrete or Ribbon Cable	Gold	Plug	Latch Lock/Eject Hooks Long
3M (TC) 4614-7305	Gray	2	2.54 mm	0.1 in	14	0.76 Ám	30 Áin	Male Pin	Free Hanging (In-Line)	IDC	0.1 in	2.54 mm	Closed End	26 AWG	28 AWG	Solid Stranded	Discrete or Ribbon Cable	Gold	Plug	Latch Lock/Eject Hooks Long
3M (TC) 4614-6300	Gray	2	2.54 mm	0.1 in	14	0.76 Ám	30 Áin	Male Pin	Free Hanging (In-Line)	IDC	0.1 in	2.54 mm	Feed Through	26 AWG	28 AWG	Solid Stranded	Discrete or Ribbon Cable	Gold	Plug	Latch Lock/Eject Hooks Long
3M (TC) 4614-6205	Gray	2	2.54 mm	0.1 in	14	0.76 Ám	30 Áin	Male Pin	Free Hanging (In-Line)	IDC	0.1 in	2.54 mm	Feed Through	26 AWG	28 AWG	Solid Stranded	Discrete or Ribbon Cable	Gold	Plug	Latch Lock/Eject Hooks Short

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.14
		10	$ 7.33
		25	$ 6.90
		50	$ 6.73
		100	$ 6.55
		300	$ 5.84
		600	$ 5.49
		1200	$ 4.85

Description

General part information

4614 Series

14 Position Rectangular Plug Connector IDC Gold 26-28 AWG, Stranded or Solid

Documents

Technical documentation and resources

Datasheet

Interconnect Catalog

Datasheet
