C4073A.18.10

Active

Prysmian Group

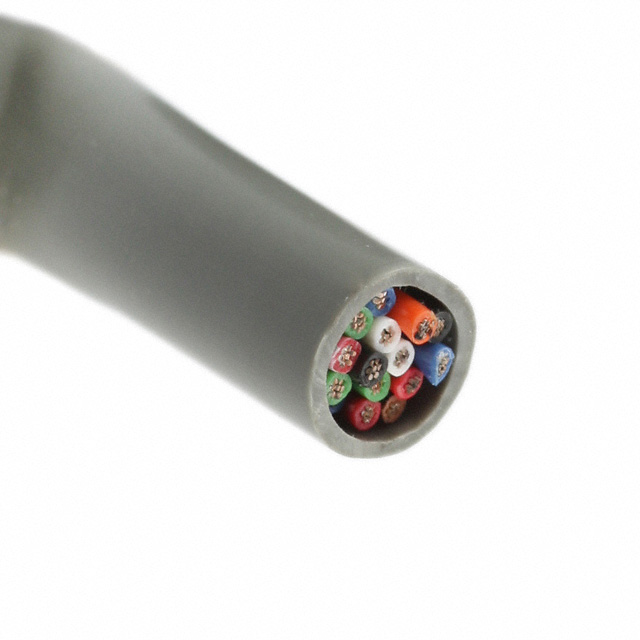

CABLE 15COND 22AWG GRAY

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 15COND 22AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	C4073A.18.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.303 in
Jacket (Insulation) Diameter [diameter]	7.7 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	15
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Wire Gauge	Jacket (Insulation) Material	Voltage	Conductor Insulation	Jacket Color	Usage	Length	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Number of Conductors	Length	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]
Prysmian Group C4073A.41.10	7	30 AWG	Copper Tinned	22 AWG	Poly-Vinyl Chloride (PVC)	300 V	Poly-Vinyl Chloride (PVC)	Gray	Communication Control	15.24 m 304.8 m	50 ft	0.303 in	7.7 mm	Multi-Conductor	15	1000 ft	-20 C	80 C
Prysmian Group C4073A.18.10	7	30 AWG	Copper Tinned	22 AWG	Poly-Vinyl Chloride (PVC)	300 V	Poly-Vinyl Chloride (PVC)	Gray	Communication Control		500 '	0.303 in	7.7 mm	Multi-Conductor	15		-20 C	80 C	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	25000	$ 1.80

General part information

15 Conductor Multi-Conductor Cable Gray 22 AWG 500.0' (152.4m)

Technical documentation and resources

No documents available
