10-2603.3178S

Active

EAO

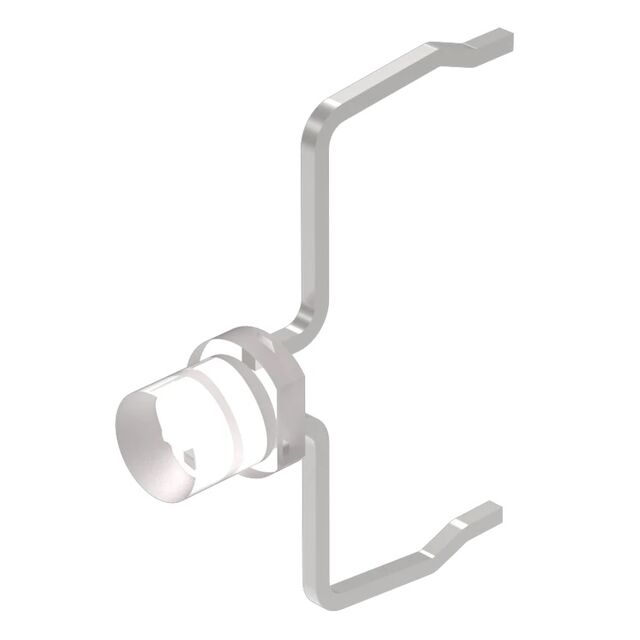

CONFIG SWITCH LAMP LED WHT 3.2V

Search across all available documentation for this part.

Active

EAO

CONFIG SWITCH LAMP LED WHT 3.2V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10-2603.3178S	10-2603 Series

	-	-
(Select First, Then Apply Filters) Compatible Series	10	10
(Select First, Then Apply Filters) Compatible Series	EAO	EAO
Color	White	White, Yellow, Green, Blue
Configuration	-	Standard
Current - Test	-	20 mA
Lens Style	-	Round with Domed Top
Millicandela Rating	-	1600 mcd
Mounting Type	-	Through Hole
Package / Case	-	Radial
Type	LED	LED
Voltage	3.2 V	2.9 - 3.6 V
Voltage - Forward (Vf) (Typ)	-	3.2 V
Wavelength - Dominant	-	525 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

CONFIG SWITCH LAMP LED WHITE 3V

Part	Color	Type	(Select First, Then Apply Filters) Compatible Series	(Select First, Then Apply Filters) Compatible Series	Voltage	Wavelength - Dominant	Current - Test	Voltage - Forward (Vf) (Typ)	Package / Case	Millicandela Rating	Lens Style	Mounting Type	Configuration
EAO 10-2603.3178K	White	LED	10	EAO	3 V
EAO 10-2603.3172D		LED	10	EAO
EAO 10-2603.3174S	Yellow	LED	10	EAO	2.9 V
EAO 10-2603.3175O	Green	LED	10	EAO	3.2 V
EAO 10-2603.3176D	Blue	LED	10	EAO	3.6 V
EAO 10-2603.3175K	Green					525 nm	20 mA	3.2 V	Radial	1600 mcd	Round with Domed Top	Through Hole	Standard
EAO 10-2603.3178S	White	LED	10	EAO	3.2 V
EAO 10-2603.3175O
EAO 10-2603.3175S	Green	LED	10	EAO	3.2 V
EAO 10-2603.3176S	Blue	LED	10	EAO	3 V

General part information

Configurable Switch Lamp LED White 3.2V
