3124A 0031000

Active

Belden Inc.

CABLE 4COND 18AWG/22AWG

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 18AWG/22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	3124A 0031000

Cable Type	Multi-Conductor
Conductor Insulation	Foam High Density Polyethylene (FHDPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	16, 7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	7.82 mm
Jacket (Insulation) Diameter [diameter]	0.308 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.039 in
Jacket (Insulation) Thickness	0.991 mm
Jacket Color	Orange
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Ratings	UL Style 20201
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	22 AWG, 18 AWG

Part	Conductor Insulation	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Conductor Material	Jacket (Insulation) Material	Length	Length	Shield Coverage	Shield Material	Jacket Color	Shield Type	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge
Belden Inc. 3124A 0031000	Foam High Density Polyethylene (FHDPE)	Drain Wire	7.82 mm	0.308 in	4	Copper Tinned	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	100 %	Aluminum	Orange	Foil	Multi-Conductor	0.039 in	0.991 mm	UL Style 20201	30 AWG	7 16	18 AWG 22 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.01

General part information

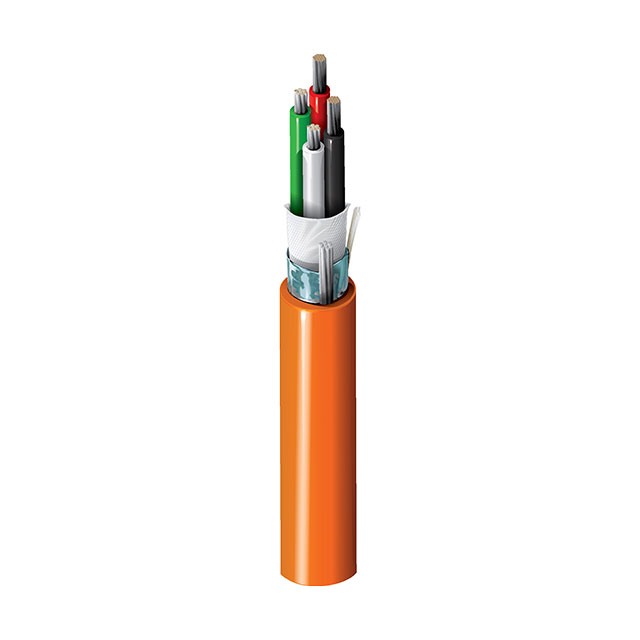

4 Conductor Multi-Conductor Cable Orange 18 AWG, 22 AWG Foil 1000.0' (304.8m)
