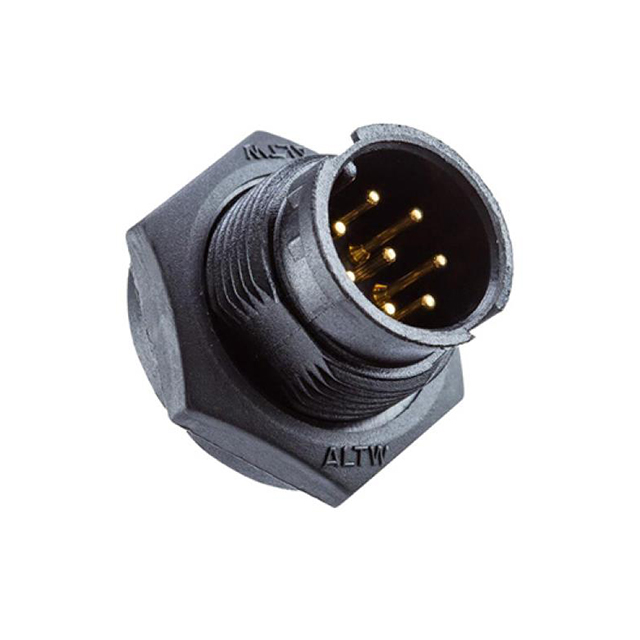

BB-03PMMP-LC7001
ActiveAmphenol LTW
CERES, STANDARD SIZE, 10A, 03 PI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BB-03PMMP-LC7001
ActiveAmphenol LTW
CERES, STANDARD SIZE, 10A, 03 PI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BB-03PMMP-LC7001 |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 10 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Size - Insert | B |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.80 | |
| 10 | $ 5.98 | |||
| 25 | $ 5.40 | |||
| 50 | $ 5.00 | |||
| 100 | $ 4.65 | |||
| 250 | $ 4.22 | |||
| 500 | $ 3.94 | |||
| 1000 | $ 3.68 | |||
| 2500 | $ 3.39 | |||
Description
General part information
BB-03PMMP Series
3 Position Circular Connector Receptacle, Male Pins Solder
