N3428-620T02RB

Active

80000902447 N3428-620T02RB=20/HDR/STR/SL/.175/CP/30U/ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

N3428-620T02RB

Active

80000902447 N3428-620T02RB=20/HDR/STR/SL/.175/CP/30U/ROHS

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Each	1	$ 2.04
		10	$ 2.04
		25	$ 2.04

Description

General part information

N3428 Series

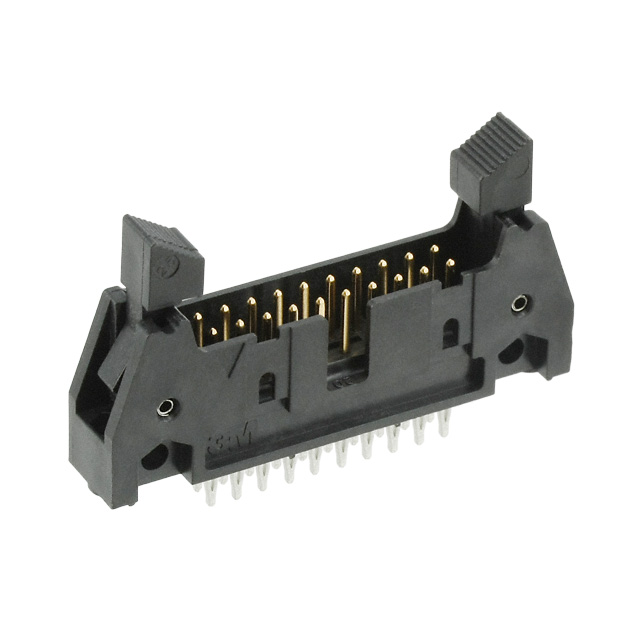

Connector Header Through Hole 20 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Interconnect Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N3428-620T02RB	N3428 Series

Connector Type	Header	Header, Stackable (2)
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	300 µin	200 - 300 µin
Contact Finish Thickness - Post	7.62 µm	5.08 - 7.62 µm
Contact Length - Mating	6.1 mm	6.1 mm
Contact Length - Mating [x]	0.24 in	0.24 in
Contact Length - Post	4.45 mm	2.84 - 15.49 mm
Contact Length - Post	0.175 in	0.112 - 0.61 in
Contact Material	Copper Alloy	Copper Alloy, Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Latch Lock/Eject Hooks, Short	Latch Lock/Eject Hooks, Short, Push-Pull, Latch Lock/Eject Hooks, Long
Insulation Color	Black	Black
Insulation Height	17.27 mm	7.87 - 17.27 mm
Insulation Height	0.68 in	0.31 - 0.68 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle
Number of Positions	20	20
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	-	0.652 - 0.695 in
Overall Contact Length	-	16.56 - 17.65 mm
Overall Contact Length [x]	0.715 "	0.715 "
Overall Contact Length [x]	18.16 mm	18.16 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall, Shrouded - 3 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder, Press-Fit	Solder, Press-Fit, Wire Wrap

N3428 Series

80000902447 N3428-620T02RB=20/HDR/STR/SL/.175/CP/30U/ROHS

Part	Contact Type	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Material	Fastening Type	Contact Finish - Mating	Number of Rows	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Insulation Color	Number of Positions Loaded	Insulation Material	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Length - Mating	Contact Length - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length [x]	Overall Contact Length [x]	Contact Shape	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Style	Contact Finish - Post	Number of Positions	Overall Contact Length	Overall Contact Length
3M N3428-620T02RB	Male Pin	1.75 A	0.1 in	2.54 mm	17.27 mm	0.68 in	Copper Alloy	Latch Lock/Eject Hooks, Short	Gold	2	UL94 V-0	4.45 mm	0.175 in	Black	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Shrouded - 4 Wall	300 µin	7.62 µm	30 Áin	0.76 Ám	Header	6.1 mm	0.24 in	2.54 mm	0.1 in	0.715 "	18.16 mm	Square	Through Hole	105 ░C	-55 °C	Press-Fit, Solder	Board to Board, Cable	Tin	20
3M N3428-1203RB	Male Pin	1.75 A	0.1 in	2.54 mm	7.87 mm	0.31 in	Copper Alloy	Latch Lock/Eject Hooks, Short	Gold	2	UL94 V-0	3.94 mm	0.155 "	Black	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Shrouded - 3 Wall	200 µin	5.08 µm	30 Áin	0.76 Ám	Header	6.1 mm	0.24 in	2.54 mm	0.1 in			Square	Through Hole, Right Angle	105 ░C	-55 °C	Solder	Board to Board, Cable	Tin	20
3M N3428-6003RB	Male Pin	1.75 A	0.1 in	2.54 mm	17.27 mm	0.68 in	Copper Alloy	Push-Pull	Gold	2	UL94 V-0	3.94 mm	0.155 "	Black	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Shrouded - 4 Wall	200 µin	5.08 µm	30 Áin	0.76 Ám	Header	6.1 mm	0.24 in	2.54 mm	0.1 in			Square	Through Hole	105 ░C	-55 °C	Solder	Board to Board, Cable	Tin	20	0.695 in	17.65 mm
3M N3428-5503	Male Pin	1.75 A	0.1 in	2.54 mm	8.64 mm	0.34 in	Copper Alloy	Latch Lock/Eject Hooks, Short	Gold	2	UL94 V-0	3.94 mm	0.155 "	Black	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Shrouded - 4 Wall	200 µin	5.08 µm	30 Áin	0.76 Ám	Header	6.1 mm	0.24 in	2.54 mm	0.1 in			Square	Through Hole, Right Angle	105 ░C	-55 °C	Solder	Board to Board, Cable	Tin-Lead	20
3M N3428-6002RB	Male Pin	1.75 A	0.1 in	2.54 mm	17.27 mm	0.68 in	Copper Alloy	Push-Pull	Gold	2	UL94 V-0	2.84 mm	0.112 in	Black	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Shrouded - 4 Wall	200 µin	5.08 µm	30 Áin	0.76 Ám	Header	6.1 mm	0.24 in	2.54 mm	0.1 in			Square	Through Hole	105 ░C	-55 °C	Solder	Board to Board, Cable	Tin	20	0.652 in	16.56 mm
3M N3428-6302RB	Male Pin	1.75 A	0.1 in	2.54 mm	17.27 mm	0.68 in	Copper Alloy	Latch Lock/Eject Hooks, Long	Gold	2	UL94 V-0	2.84 mm	0.112 in	Black	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Shrouded - 4 Wall	200 µin	5.08 µm	30 Áin	0.76 Ám	Header	6.1 mm	0.24 in	2.54 mm	0.1 in			Square	Through Hole	105 ░C	-55 °C	Solder	Board to Board, Cable	Tin	20	0.652 in	16.56 mm
3M N3428-3005EB	Male Pin	1.75 A	0.1 in	2.54 mm	8.64 mm	0.34 in	Phosphor Bronze	Push-Pull	Gold	2	UL94 V-0	15.49 mm	0.61 in	Black	All	Polybutylene Terephthalate (PBT), Glass Filled	Shrouded - 3 Wall			30 Áin	0.76 Ám	Header	6.1 mm	0.24 in	2.54 mm	0.1 in			Square	Through Hole, Right Angle	105 ░C	-55 °C	Wire Wrap	Board to Board, Cable		20
3M N3428-L202RB	Male Pin		0.1 in	2.54 mm	16.76 mm	0.66 in	Copper Alloy	Latch Lock/Eject Hooks, Short	Gold	2	UL94 V-0	2.84 mm	0.112 in	Black	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Shrouded - 4 Wall	200 µin	5.08 µm	30 Áin	0.76 Ám	Header, Stackable (2)	6.1 mm	0.24 in	2.54 mm	0.1 in			Square	Through Hole, Right Angle	105 ░C	-55 °C	Solder	Board to Board, Cable	Tin	20
3M N3428-5305EB	Male Pin		0.1 in	2.54 mm	8.64 mm	0.34 in	Phosphor Bronze	Latch Lock/Eject Hooks, Long	Gold	2	UL94 V-0	15.49 mm	0.61 in	Black	All	Polybutylene Terephthalate (PBT), Glass Filled	Shrouded - 4 Wall			30 Áin	0.76 Ám	Header	6.1 mm	0.24 in	2.54 mm	0.1 in			Square	Through Hole, Right Angle	105 ░C	-55 °C	Wire Wrap	Board to Board, Cable		20
