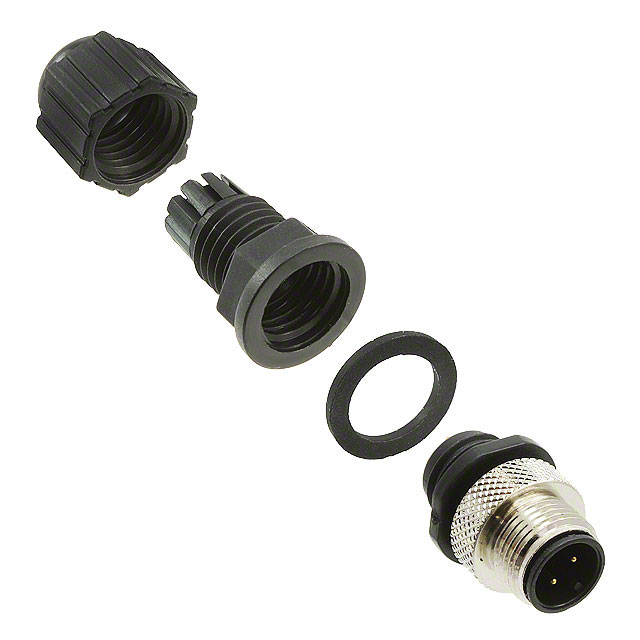

3N104-A000-S08 BF
Active3M (TC)
CONN PLUG MALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3N104-A000-S08 BF
Active3M (TC)
CONN PLUG MALE 4P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3N104-A000-S08 BF |
|---|---|
| Applications | Industrial |
| Backshell Material, Plating | Thermoplastic |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 0.203 Ám |
| Contact Finish Thickness - Mating | 8 Áin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Features | Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Material | Metal |
| Shell Size - Insert | M12-4 |
| Shielding | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.93 | |
| 10 | $ 18.14 | |||
| 25 | $ 17.19 | |||
| 50 | $ 16.94 | |||
| 100 | $ 14.95 | |||
| 300 | $ 13.95 | |||
| 500 | $ 13.65 | |||
Description
General part information
3N104 Series
4 Position Circular Connector Plug, Male Pins Solder Cup
Documents
Technical documentation and resources
