DS8500-KIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR DS8500
Deep-Dive with AI
Search across all available documentation for this part.
DS8500-KIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR DS8500
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DS8500-KIT# | DS8500 Series |
|---|---|---|
| Applications | - | HART Modem |
| Embedded | False | False |
| Function | Modem | Modem |
| Interface | - | Serial |
| Mounting Type | - | Surface Mount |
| Package / Case | - | 20-WQFN Exposed Pad |
| Primary Attributes | HART® FSK Half-Duplex Modem | HART® FSK Half-Duplex Modem |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 20-TQFN (5x5) |
| Type | Telecom | Telecom |
| Utilized IC / Part | DS8500 | DS8500 |
| Voltage - Supply | - | 2.7 V |
| Voltage - Supply | - | 3.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 129.99 | |
DS8500 Series
EVAL KIT FOR DS8500
| Part | Primary Attributes | Function | Embedded | Utilized IC / Part | Type | Supplied Contents | Mounting Type | Interface | Supplier Device Package | Voltage - Supply [Min] | Voltage - Supply [Max] | Applications | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated DS8500-KIT# | HART® FSK Half-Duplex Modem | Modem | DS8500 | Telecom | Board(s) | ||||||||
Analog Devices Inc./Maxim Integrated DS8500-JND+ | Surface Mount | Serial | 20-TQFN (5x5) | 2.7 V | 3.6 V | HART Modem | 20-WQFN Exposed Pad | ||||||
Analog Devices Inc./Maxim Integrated DS8500-JND+T&R | Surface Mount | Serial | 20-TQFN (5x5) | 2.7 V | 3.6 V | HART Modem | 20-WQFN Exposed Pad |
Description
General part information
DS8500 Series

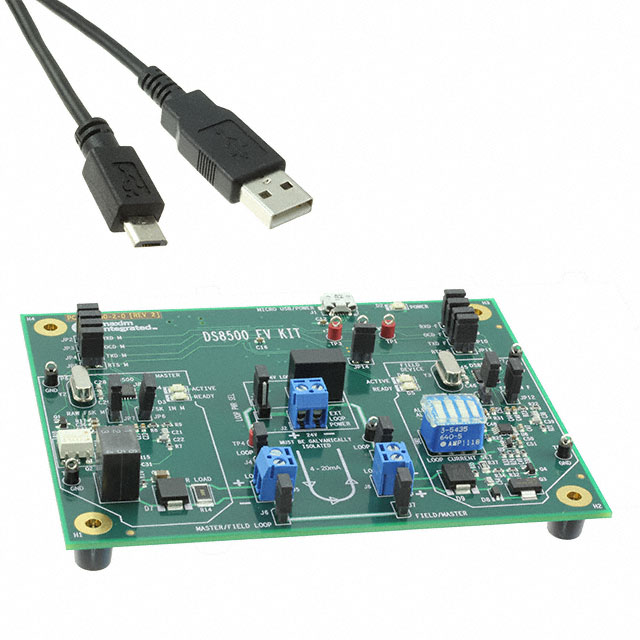

DS8500 Modem Telecom Evaluation Board
