1060989-1

Active

TE Connectivity AMP Connectors

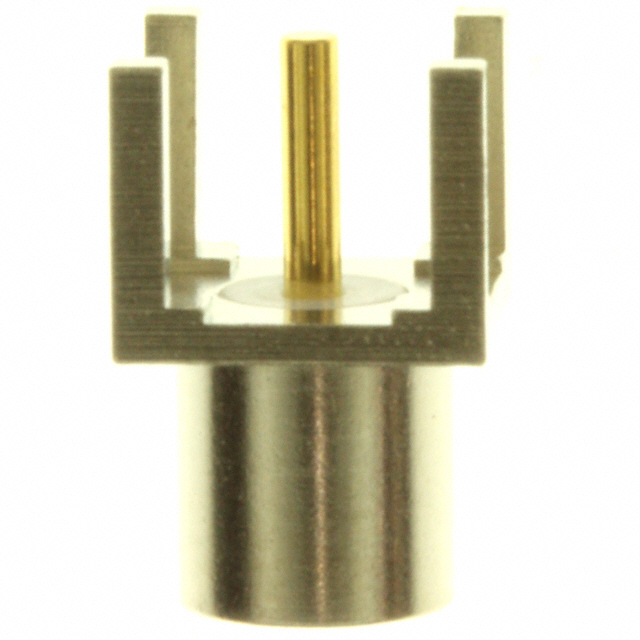

CONN MCX RCPT STR 50 OHM PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN MCX RCPT STR 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	1060989-1

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.1 dB
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

CONN MCX RCPT STR 50 OHM PCB

Part	Frequency - Max [Max]	Number of Ports	Body Finish	Shield Termination	Body Material	Center Contact Plating	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Insertion Loss	Fastening Type	Mounting Type	Impedance	Connector Type	Mating Cycles	Contact Termination	Voltage Rating	Center Contact Material	Dielectric Material
TE Connectivity AMP Connectors 1060989-1	6000 MHz	1	Nickel	Solder	Brass	Gold	MCX	-65 ░C	165 °C	Silver	0.1 dB	Snap-On	Through Hole	50 Ohms	Female Socket, Receptacle	500	Solder	335 V	Beryllium Copper	Polytetrafluoroethylene (PTFE)

General part information

MCX Connector Receptacle, Female Socket 50 Ohms Through Hole Solder
