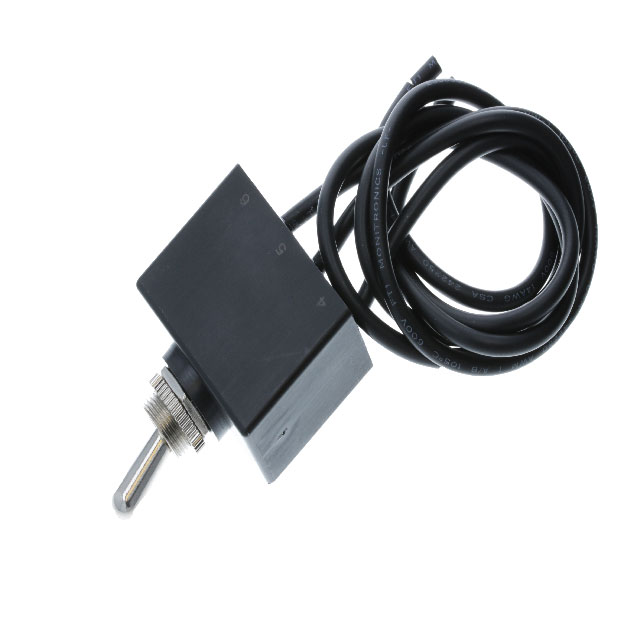

TB1-1F-DC-WW

Active

Switch Components

SWITCH TOGGLE SPDT 25A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE SPDT 25A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TB1-1F-DC-WW

Actuator Length [x]	15.32 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPDT
Current Rating (Amps)	25 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	On-Off-On
Termination Style	Wire Leads
Voltage Rating - DC	12 V

SWITCH TOGGLE SPDT 25A 12V

Part	Termination Style	Bushing Thread	Illumination	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Voltage Rating - DC	Switch Function	Actuator Length [x]	Panel Cutout Dimensions [diameter]	Circuit	Actuator Material	Electrical Life	Current Rating (Amps)
Switch Components TB1-1F-DC-WW	Wire Leads	15/32-32	Non-Illuminated	Standard Round	85 °C	-40 °C	IP67 - Dust Tight, Waterproof	12 V	On-Off-On	15.32 mm	12 mm	SPDT	Brass, Nickel Plated	6000 Cycles	25 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.44

General part information

Toggle Switch SPDT Panel Mount
