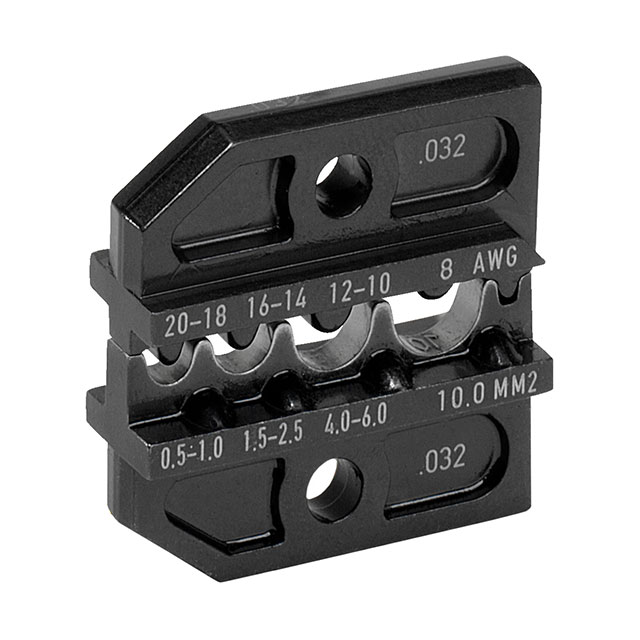

624 032 3 0 RT

Active

Rennsteig Tools, Inc.

CRIMPING DIE SET FOR PEW12

Search across all available documentation for this part.

Active

Rennsteig Tools, Inc.

CRIMPING DIE SET FOR PEW12

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	624 032 3 0 RT	624 032 Series

For Use With/Related Products	Splices and Terminals	Terminals, Splices and Terminals
Ratcheting	Ratchet	Ratchet
Tool Type	Hand Crimper	Hand Crimper
Wire Entry Location	Side Entry	Side Entry
Wire Gauge or Range - AWG	-	20 AWG
Wire Gauge or Range - AWG	-	7 AWG
Wire Gauge or Range - mm˛	-	0.5 mm˛
Wire Gauge or Range - mm˛	-	10 mm˛
Wire Gauge or Range - mm² [Max]	10 mm²	10 mm²
Wire Gauge or Range - mm² [Min]	0.5 mm²	0.5 mm²

CRIMPING SYSTEM TOOL 20-6 AWG

Part	Ratcheting	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Entry Location	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Tool Type	For Use With/Related Products	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]
Rennsteig Tools, Inc. 624 032 3 RT	Ratchet	20 AWG	7 AWG	Side Entry	0.5 mm˛	10 mm˛	Hand Crimper	Terminals
Rennsteig Tools, Inc. 624 032 3 0 RT	Ratchet			Side Entry			Hand Crimper	Splices and Terminals	0.5 mm²	10 mm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hand Crimper Tool Splices and Terminals
