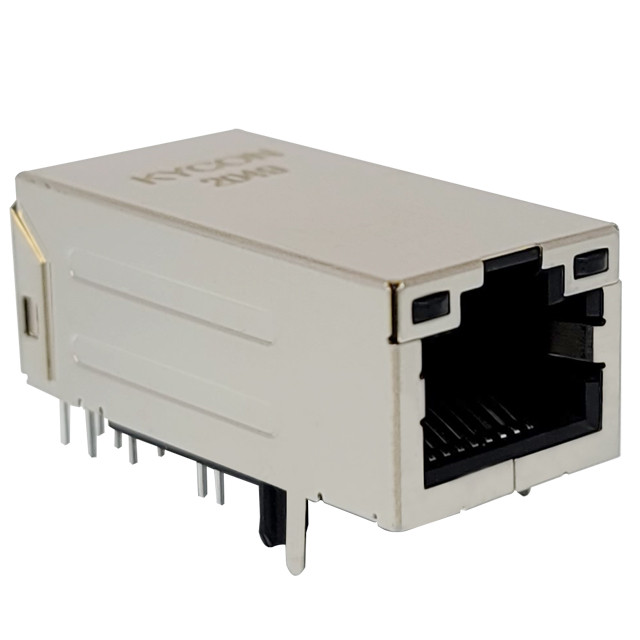

G16LX-112S-5G-G/Y-50

Active

Kycon, Inc.

CONN JACK RA W/LED 5G

Search across all available documentation for this part.

Active

Kycon, Inc.

CONN JACK RA W/LED 5G

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	G16LX-112S-5G-G/Y-50	G16LX Series

Applications	5G Base-T, AutoMDIX, Power over Ethernet (PoE)	5G Base-T, AutoMDIX, Power over Ethernet (PoE)
Connector Type	RJ45	RJ45
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Material	Phosphor Bronze	Phosphor Bronze
Features	Board Guide	Board Guide
Height Above Board [z]	13.61 mm	13.61 mm
Height Above Board [z]	0.536 "	0.536 "
Housing Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
LED Color	Yellow, Green	Yellow, Green
Mounting Type	Through Hole	Through Hole
Number of Cores per Jack	8	8
Number of Ports	1	1
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	90 °	90 °
Shield Material	Brass	Brass
Shielding	Shielded	Shielded, Shielded, EMI Finger
Tab Direction	Up	Up
Termination	Solder	Solder

CONN JACK RA W/LED 5G

Part	Mounting Type	Number of Ports	Connector Type	LED Color	Shielding	Shield Material	Height Above Board [z]	Height Above Board [z]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Applications	Housing Material	Orientation	Number of Cores per Jack	Number of Rows	Termination	Tab Direction	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Features
Kycon, Inc. G16LX-112S-5G-G/Y-50	Through Hole	1	RJ45	Green, Yellow	Shielded	Brass	13.61 mm	0.536 "	85 °C	-40 °C	Phosphor Bronze	5G Base-T, AutoMDIX, Power over Ethernet (PoE)	Polybutylene Terephthalate (PBT)	90 °	8	1	Solder	Up	Gold	50 µin	1.27 µm	Board Guide
Kycon, Inc. G16LX-112S7-5G-G/Y-50	Through Hole	1	RJ45	Green, Yellow	Shielded, EMI Finger	Brass	13.61 mm	0.536 "	85 °C	-40 °C	Phosphor Bronze	5G Base-T, AutoMDIX, Power over Ethernet (PoE)	Polybutylene Terephthalate (PBT)	90 °	8	1	Solder	Up	Gold	50 µin	1.27 µm	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Port RJ45Through Hole 5G Base-T, AutoMDIX, Power over Ethernet (PoE)
