BAW156

Obsolete

Infineon Technologies

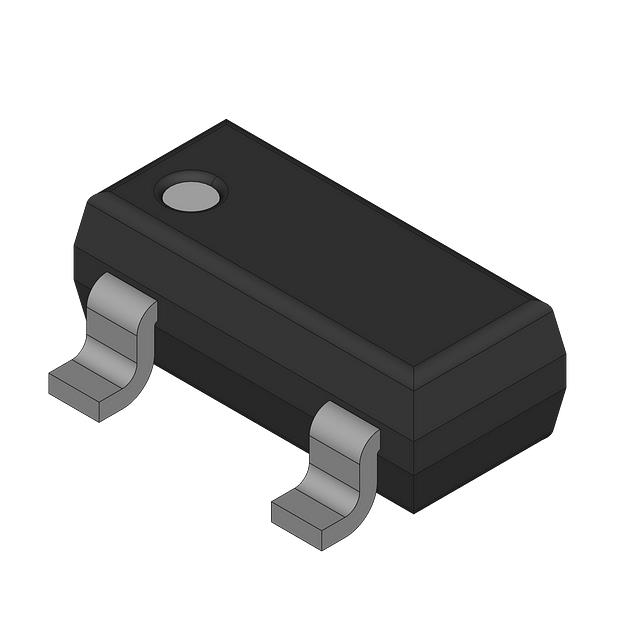

DIODE ARRAY GP 85V 140MA SOT23-3

Search across all available documentation for this part.

Obsolete

Infineon Technologies

DIODE ARRAY GP 85V 140MA SOT23-3

Technical Specifications

Parameters and characteristics for this part

Specification	BAW156

Current - Average Rectified (Io) (per Diode)	140 mA
Current - Reverse Leakage @ Vr	5 nA
Diode Configuration	1 Pair Common Anode
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	SOT-23-3, TO-236-3, SC-59
Reverse Recovery Time (trr)	3 çs
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOT23-3 (TO-236)
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	85 V
Voltage - Forward (Vf) (Max) @ If	1.1 V

Part	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Diode Configuration	Current - Average Rectified (Io) (per Diode)	Reverse Recovery Time (trr)	Package / Case	Supplier Device Package	Speed	Speed	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type
Infineon Technologies BAW156	1.1 V	150 °C	-65 C	Standard	1 Pair Common Anode	140 mA	3 çs	SC-59 SOT-23-3 TO-236-3	SOT23-3 (TO-236)	Any Speed	200 mA	5 nA	85 V	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5948	$ 0.05

General part information

Diode Array 1 Pair Common Anode 85 V 140mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3
