31-70020

Active

Amphenol RF

CONN ADAPT JACK-JACK BNC 75 OHM

Search across all available documentation for this part.

Active

Amphenol RF

CONN ADAPT JACK-JACK BNC 75 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	31-70020

Adapter Series	BNC to BNC
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Impedance	75 Ohms
Includes	1 Gasket, 1 Connector, 1 Nut, 1 Lockwasher
Mounting Feature	Bulkhead
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Conversion Type	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Mounting Type	Fastening Type	Convert From (Adapter End)	Center Contact Material	Adapter Series	Frequency - Max [Max]	Adapter Type	Center Contact Plating	Dielectric Material	Center Gender	Convert To (Adapter End)	Body Finish	Style	Contact Termination	Mating Cycles	Shield Termination	Housing Color	Connector Type	Includes	Cable Group	Number of Ports	Connector Style	Mounting Feature
Amphenol RF 31-70019	Same Series	Brass	-65 ░C	165 °C	75 Ohms	Free Hanging (In-Line)	Bayonet Lock	BNC Jack Female Socket	Phosphor Bronze	BNC to BNC	4 GHz	Jack to Jack	Gold	Polyoxymethylene (POM) Acetal	Female to Female	BNC Jack Female Socket	Nickel	Straight
Amphenol RF 31-70030		Beryllium Copper Brass	-65 ░C	165 °C	75 Ohms	Free Hanging (In-Line)	Bayonet Lock		Brass		4 GHz		Gold	Polytetrafluoroethylene (PTFE)			Nickel		Crimp	500	Crimp	Silver	Male Pin Plug	1 Connector 1 Contact 1 Ferrule	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	1	BNC
Amphenol RF 31-70020	Same Series	Brass	-65 ░C	165 °C	75 Ohms		Bayonet Lock	BNC Jack Female Socket	Beryllium Copper	BNC to BNC	4 GHz	Jack to Jack	Gold	Polytetrafluoroethylene (PTFE)	Female to Female	BNC Jack Female Socket	Nickel	Straight						1 Connector 1 Gasket 1 Lockwasher 1 Nut				Bulkhead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

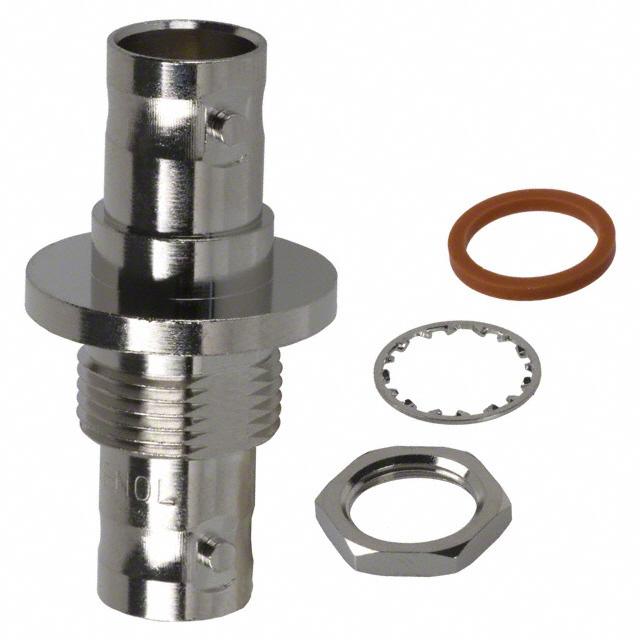

Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 75 Ohms
