415-0202-012

Active

Cinch Connectivity Solutions Johnson

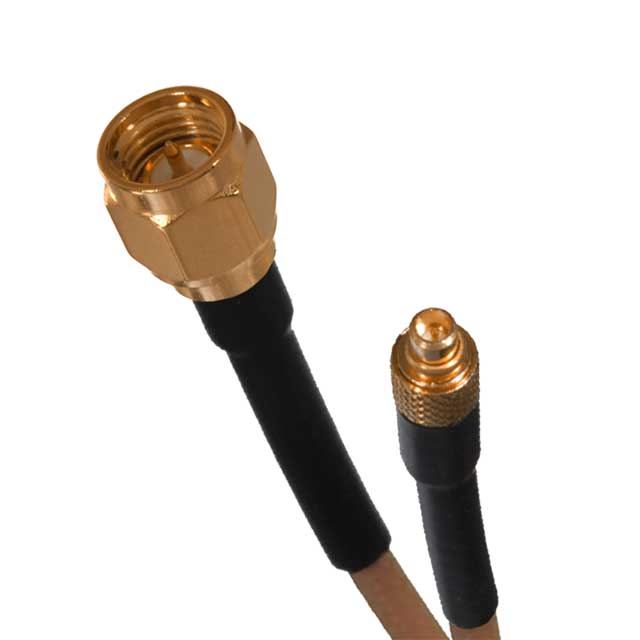

CBL ASSY SMA-MMCX PLUG-PLUG 12"

Deep-Dive with AI

Search across all available documentation for this part.

415-0202-012

Active

Cinch Connectivity Solutions Johnson

CBL ASSY SMA-MMCX PLUG-PLUG 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 17.27
		10	$ 14.96
		25	$ 14.18
		50	$ 13.98
		100	$ 12.33
		250	$ 11.51
		500	$ 11.27

Description

General part information

415-0202 Series

Cable Assembly Coaxial SMA to MMCX RG-174 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	415-0202-012	415-0202 Series

1st Connector	SMA Plug	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Male	Male
2nd Connector	MMCX Plug	MMCX Plug
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Impedance	50 Ohms	50 Ohms
Cable Type	RG-174	RG-174
Color	Copper	Copper
Connector Impedance	50 Ohms	50 Ohms
Features	Shielded	Shielded
Length	12 "	2.953 - 39.4 "
Length	304.8 mm	1 - 609.6 mm
Length	-	3.3 - 5 ft
Length	-	0.1 m
Length	-	3.937 in
Overall Impedance	50 Ohms	50 Ohms
Style	SMA to MMCX	SMA to MMCX

415-0202 Series

CBL ASSY SMA-MMCX PLUG-PLUG 12"

Part	Connector Impedance	1st Connector Mounting Type	2nd Connector	Cable Type	Style	2nd Connector Mounting Type	Length	Length	1st Connector	Cable Impedance	Overall Impedance	Features	1st Contact Gender	Color	2nd Contact Gender	Length	Length [x]	Length [x]
Cinch Connectivity Solutions Johnson 415-0202-012	50 Ohms	Free Hanging (In-Line)	MMCX Plug	RG-174	SMA to MMCX	Free Hanging (In-Line)	12 "	304.8 mm	SMA Plug	50 Ohms	50 Ohms	Shielded	Male	Copper	Male
Cinch Connectivity Solutions Johnson 415-0202-036	50 Ohms	Free Hanging (In-Line)	MMCX Plug	RG-174	SMA to MMCX	Free Hanging (In-Line)	36 in	91.44 cm	SMA Plug	50 Ohms	50 Ohms	Shielded	Male	Copper	Male
Cinch Connectivity Solutions Johnson 415-0202-060	50 Ohms	Free Hanging (In-Line)	MMCX Plug	RG-174	SMA to MMCX	Free Hanging (In-Line)	5 '	1.5 m	SMA Plug	50 Ohms	50 Ohms	Shielded	Male	Copper	Male	5 ft
Cinch Connectivity Solutions Johnson 415-0202-MM100	50 Ohms	Free Hanging (In-Line)	MMCX Plug	RG-174	SMA to MMCX	Free Hanging (In-Line)			SMA Plug	50 Ohms	50 Ohms	Shielded	Male	Copper	Male		0.1 m	3.937 in
Cinch Connectivity Solutions Johnson 415-0202-MM500	50 Ohms	Free Hanging (In-Line)	MMCX Plug	RG-174	SMA to MMCX	Free Hanging (In-Line)	19.69 "	50 cm	SMA Plug	50 Ohms	50 Ohms	Shielded	Male	Copper	Male
Cinch Connectivity Solutions Johnson 415-0202-M1.0	50 Ohms	Free Hanging (In-Line)	MMCX Plug	RG-174	SMA to MMCX	Free Hanging (In-Line)	39.4 in	1 m	SMA Plug	50 Ohms	50 Ohms	Shielded	Male	Copper	Male	3.3 ft
Cinch Connectivity Solutions Johnson 415-0202-024	50 Ohms	Free Hanging (In-Line)	MMCX Plug	RG-174	SMA to MMCX	Free Hanging (In-Line)	24 "	609.6 mm	SMA Plug	50 Ohms	50 Ohms	Shielded	Male	Copper	Male
Cinch Connectivity Solutions Johnson 415-0202-006	50 Ohms	Free Hanging (In-Line)	MMCX Plug	RG-174	SMA to MMCX	Free Hanging (In-Line)	6 in	152.4 mm	SMA Plug	50 Ohms	50 Ohms	Shielded	Male	Copper	Male
Cinch Connectivity Solutions Johnson 415-0202-MM75	50 Ohms	Free Hanging (In-Line)	MMCX Plug	RG-174	SMA to MMCX	Free Hanging (In-Line)	2.953 in	75 mm	SMA Plug	50 Ohms	50 Ohms	Shielded	Male	Copper	Male
