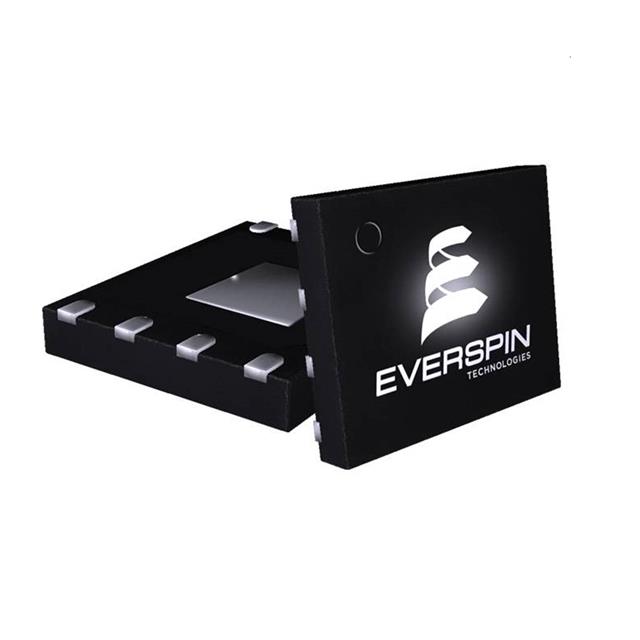

MR25H40VDF

Active

Everspin Technologies Inc.

IC RAM 4MBIT SPI 40MHZ 8DFN

Search across all available documentation for this part.

Active

Everspin Technologies Inc.

IC RAM 4MBIT SPI 40MHZ 8DFN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MR25H40VDF	MR25H40 Series

Access Time	9 ns	9 ns
Clock Frequency	40 MHz	40 MHz
Contents	-	Board(s)
Function	-	MRAM
Grade	Automotive	Automotive
Interconnect System	-	Arduino R3 Shield
Memory Format	RAM	RAM
Memory Interface	SPI	SPI
Memory Organization	512 K	512 K
Memory Size	512 kb	512 kb
Memory Type	Non-Volatile	Non-Volatile
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	105 °C	85 - 105 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	8-VDFN Exposed Pad	8-VDFN Exposed Pad
Platform	-	Arduino
Qualification	AEC-Q100	AEC-Q100
Suggested Programming Environment	-	Mbed-Enabled
Supplier Device Package	8-DFN-EP, Small Flag (5x6)	8-DFN-EP, Large Flag (5x6), 8-DFN-EP, Small Flag (5x6)
Technology	MRAM (Magnetoresistive RAM)	MRAM (Magnetoresistive RAM)
Type	-	Memory
Utilized IC / Part	-	MR25H40
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	3 V	3 V

MRAM 4MBIT SERIAL-SPI INTERFACE 3.3V 8-PIN DFN EP T/R

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Technology	Memory Type	Memory Interface	Memory Format	Memory Organization	Memory Size	Voltage - Supply [Max]	Voltage - Supply [Min]	Clock Frequency	Supplier Device Package	Qualification	Grade	Access Time	Type	Contents	Function	Utilized IC / Part	Suggested Programming Environment	Interconnect System	Platform
Everspin Technologies Inc. MR25H40CDCR	85 °C	-40 °C	8-VDFN Exposed Pad	Surface Mount	MRAM (Magnetoresistive RAM)	Non-Volatile	SPI	RAM	512 K	512 kb	3.6 V	3 V	40 MHz	8-DFN-EP, Large Flag (5x6)
Everspin Technologies Inc. MR25H40VDF	105 °C	-40 °C	8-VDFN Exposed Pad	Surface Mount	MRAM (Magnetoresistive RAM)	Non-Volatile	SPI	RAM	512 K	512 kb	3.6 V	3 V	40 MHz	8-DFN-EP, Small Flag (5x6)	AEC-Q100	Automotive	9 ns
Everspin Technologies Inc. MR25H00-EVAL																		Memory	Board(s)	MRAM	MR25H40	Mbed-Enabled	Arduino R3 Shield	Arduino
Everspin Technologies Inc. MR25H40CDFR	85 °C	-40 °C	8-VDFN Exposed Pad	Surface Mount	MRAM (Magnetoresistive RAM)	Non-Volatile	SPI	RAM	512 K	512 kb	3.6 V	3 V	40 MHz	8-DFN-EP, Small Flag (5x6)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MRAM (Magnetoresistive RAM) Memory IC 4Mbit SPI 40 MHz 9 ns 8-DFN-EP, Small Flag (5x6)
