88444 0021000

Active

Belden Inc.

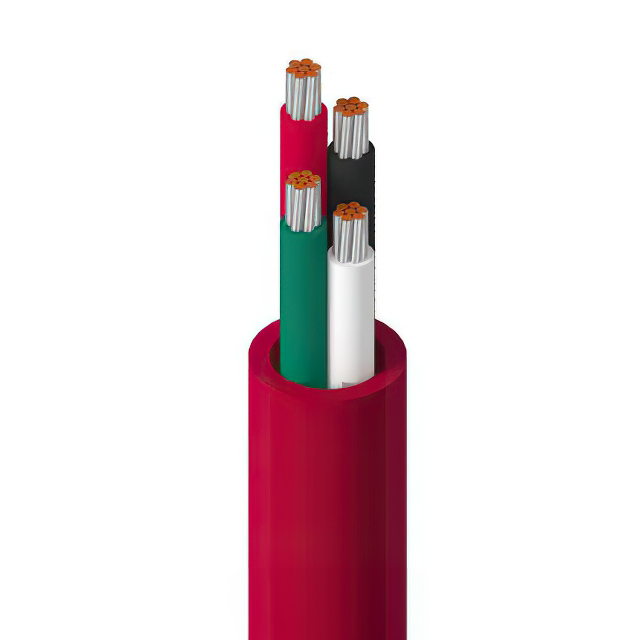

CABLE 4COND 22AWG RED

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 22AWG RED

Technical Specifications

Parameters and characteristics for this part

Specification	88444 0021000

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Direct Burial
Jacket (Insulation) Diameter [diameter]	3.07 mm
Jacket (Insulation) Diameter [diameter]	0.121 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.254 mm
Jacket (Insulation) Thickness	0.01 in
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Ratings	UL Style CMP
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	22 AWG

Part	Features	Jacket (Insulation) Material	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Cable Type	Conductor Material	Number of Conductors	Usage	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Wire Gauge	Length	Length
Belden Inc. 88444 002500	Direct Burial	Fluorinated Ethylene-Propylene (FEP) Plenum	500 '	152.4 m	7	30 AWG	200 °C	-70 °C	UL Style CMP	3.07 mm	0.121 in	300 V	Multi-Conductor	Copper Tinned	4	Audio Control Instrumentation	Fluorinated Ethylene-Propylene (FEP)	0.254 mm	0.01 in	Red	22 AWG
Belden Inc. 88444 0021000	Direct Burial	Fluorinated Ethylene-Propylene (FEP) Plenum			7	30 AWG	200 °C	-70 °C	UL Style CMP	3.07 mm	0.121 in	300 V	Multi-Conductor	Copper Tinned	4	Audio Control Instrumentation	Fluorinated Ethylene-Propylene (FEP)	0.254 mm	0.01 in	Red	22 AWG	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Red 22 AWG 1000.0' (304.8m)
