NN02-201

Active

Ignion

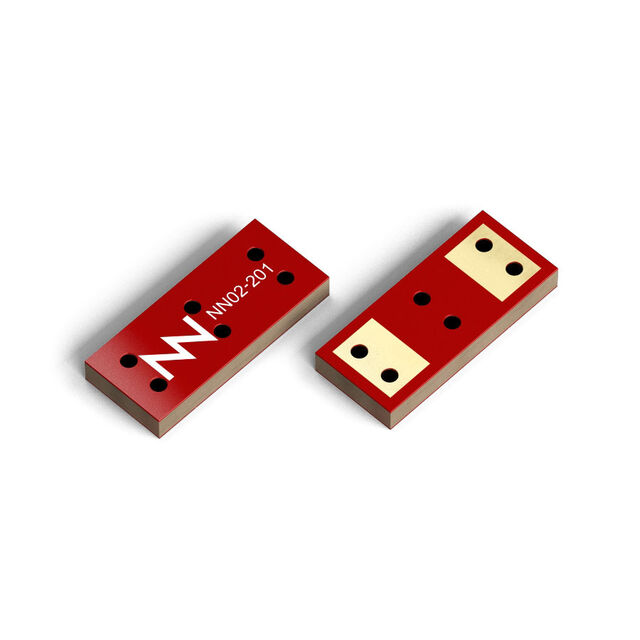

ONE MXTEND MULTIBAND ANTENNA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NN02-201

Active

Ignion

ONE MXTEND MULTIBAND ANTENNA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.85
		10	$ 0.61
		25	$ 0.55
		100	$ 0.48
		250	$ 0.45
		500	$ 0.43
		1000	$ 0.43
	Digi-Reel®	1	$ 0.85
		10	$ 0.61
		25	$ 0.55
		100	$ 0.48
		250	$ 0.45
		500	$ 0.43
		1000	$ 0.43
	Tape & Reel (TR)	5000	$ 0.37
		10000	$ 0.35

Description

General part information

NN02 Series

RF ANTENNA 2G, 3G, 4G, 5G, 802.11b/g/n/a/ac/ax, Beidou, Bluetooth, DCS, Galileo, Glonass, GNSS, GPS, GSM, LoRa, LTE, NB-IoT, PCS, Thread, UMTS, Wi-Fi, Wi-SUN, WLAN, Z-Wave, Zigbee Chip Solder Surface Mount

Documents

Technical documentation and resources

Specification	NN02-201	NN02 Series

Antenna Type	Chip	Chip
Applications	Wi-SUN, DCS, PCS, LTE, Thread, Beidou, 802.11b/g/n/a/ac/ax, 5G, Galileo, ZigBee, Z-Wave, GSM, GNSS, 3G, UMTS, Wi-Fi, WLAN, LoRa, NB-IoT, GLONASS, GPS, 4G, Bluetooth, 2G	WiFi DB, LTE, UMTS, PCS, DCS, BT, GNSS, GSM, Wi-SUN, Thread, Beidou, 802.11b/g/n/a/ac/ax, 5G, Galileo, ZigBee, Z-Wave, 3G, Wi-Fi, WLAN, LoRa, NB-IoT, GLONASS, GPS, 4G, Bluetooth, 2G
Frequency (Center/Band)	-	1.7 - 900 GHz
Frequency Group	Ultra Wide Band	Ultra Wide Band, Wide Band
Frequency Range [Max]	10.6 GHz	2.5 - 10.6 GHz
Frequency Range [Min]	800 MHz	2.4 - 824 MHz
Gain	1.9 dBi, 5 dBi, 2 dBic, 1.7 dBi, 3.3 dBi, 3.2 dBi, 1.3 dBi, 3.1 dBi	0.2 - 5 dBi
Height (Max)	-	0.031 - 0.197 in
Height (Max)	-	0.8 - 3.2 mm
Height (Max)	-	2 - 5 mm
Height (Max) [Max] [z]	1 mm	1 mm
Height (Max) [Max] [z]	0.039 in	0.039 in
Mounting Type	Surface Mount	Surface Mount
Number of Bands	-	1 - 14
RF Family/Standard	WiFi, Bluetooth, Cellular, Navigation	WiFi, Bluetooth, Cellular, Navigation
Termination	Solder	Solder
VSWR	3	2.5 - 3

Part	Antenna Type	VSWR	Termination	Number of Bands	Applications	Gain	Frequency Range [Min]	Frequency Range [Max]	Frequency Group	Mounting Type	RF Family/Standard	Height (Max) [Max]	Height (Max)	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Frequency (Center/Band)	Height (Max) [Max]
Ignion NN02-224	Chip	3	Solder	14	BT, DCS, GNSS, GSM, LTE, PCS, UMTS, WiFi DB	1.9 dBi	824 MHz	5.875 GHz	Ultra Wide Band	Surface Mount	Bluetooth, Cellular, Navigation, WiFi	0.094 in	2.4 mm
Ignion NN02-201	Chip	3	Solder		2G, 3G, 4G, 5G, 802.11b/g/n/a/ac/ax, Beidou, Bluetooth, DCS, Galileo, GLONASS, GNSS, GPS, GSM, LoRa, LTE, NB-IoT, PCS, Thread, UMTS, Wi-Fi, Wi-SUN, WLAN, Z-Wave, ZigBee	1.3 dBi, 1.7 dBi, 1.9 dBi, 2 dBic, 3.1 dBi, 3.2 dBi, 3.3 dBi, 5 dBi	800 MHz	10.6 GHz	Ultra Wide Band	Surface Mount	Bluetooth, Cellular, Navigation, WiFi			1 mm	0.039 in
Ignion NN02-250	Chip	3	Solder	12	DCS, GSM, LTE, PCS, UMTS	0.2 dBi, 1 dBi, 3.3 dBi	824 MHz	2.69 GHz	Wide Band	Surface Mount	Cellular	0.197 in				1.7 GHz, 1.8 GHz, 1.9 GHz, 2 GHz, 2.1 GHz, 2.3 GHz, 2.5 GHz, 2.6 GHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz	5 mm
Ignion NN02-220	Chip	3	Solder	12	DCS, GSM, LTE, PCS, UMTS	3.1 dBi	698 MHz	2.69 GHz	Wide Band	Surface Mount	Cellular	0.079 in				1.7 GHz, 1.8 GHz, 1.9 GHz, 2 GHz, 2.1 GHz, 2.3 GHz, 2.5 GHz, 2.6 GHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz	2 mm
Ignion NN02-232	Chip	3	Solder	12	DCS, GSM, LTE, PCS, UMTS	0.3 dBi, 1.3 dBi, 3.8 dBi	824 MHz	2.69 GHz	Wide Band	Surface Mount	Cellular	0.126 in	3.2 mm			1.7 GHz, 1.8 GHz, 1.9 GHz, 2 GHz, 2.1 GHz, 2.3 GHz, 2.5 GHz, 2.6 GHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz
Ignion NN02-101	Chip	2.5	Solder	1	Bluetooth, Wi-Fi	2.4 dBi	2.4 GHz	2.5 GHz		Surface Mount	Bluetooth, WiFi	0.031 in	0.8 mm
