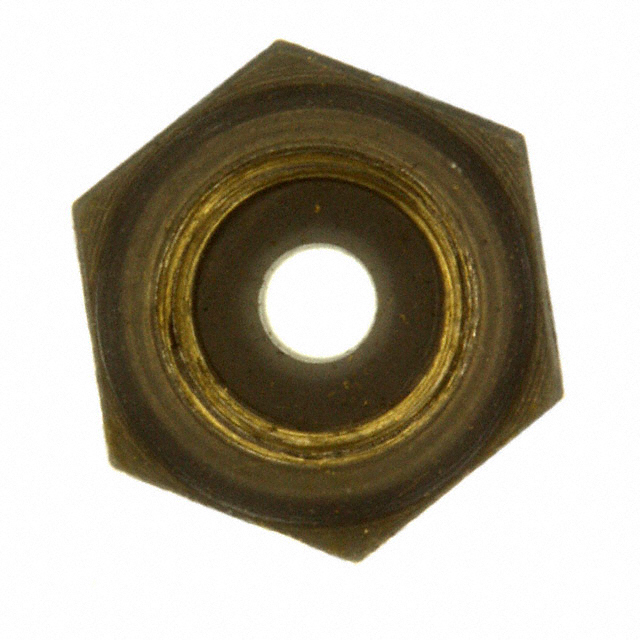

N9042X1/8 2

Active

APM HEXSEAL

ROTARY SHAFT SEAL GRAY

Search across all available documentation for this part.

Active

APM HEXSEAL

ROTARY SHAFT SEAL GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	N9042X1/8 2

Actuator Diameter [diameter]	0.125 in
Actuator Diameter [diameter]	3.18 mm
Color	Gray
For Use With/Related Products	Multiple Series
Ingress Protection	IP66/IP68
Material	Silicone Rubber
Mounting Feature	Front of Panel
Operating Temperature [Max]	204 °C
Operating Temperature [Min]	-70 °C
Size / Dimension [z]	0.219 in
Size / Dimension [z]	5.56 mm
Thread Size	1/4-28 NEF-2B
Type	Rotary Shaft Seal

ROTARY SHAFT SEAL GRAY

Part	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Thread Size	Mounting Feature	Ingress Protection	Type	Material	Operating Temperature [Max]	Operating Temperature [Min]	Color	Size / Dimension [z]	Size / Dimension [z]	For Use With/Related Products
APM HEXSEAL N9042X1/8 2	0.125 in	3.18 mm	1/4-28 NEF-2B	Front of Panel	IP66/IP68	Rotary Shaft Seal	Silicone Rubber	204 °C	-70 °C	Gray	0.219 in	5.56 mm	Multiple Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ROTARY SHAFT SEAL GRAY

Technical documentation and resources
