4282-7SG-3ES

Active

Conxall/Switchcraft

CONN RCPT FMALE 7P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 7P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN RCPT FMALE 7P GOLD SLDR CUP

Part	Mounting Feature	Orientation	Ingress Protection	Voltage Rating	Contact Material	Shielding	Color	Primary Material	Fastening Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Finish - Mating	Connector Type
Conxall/Switchcraft 4282-7SG-300	Bulkhead - Front Side Nut	Keyed	Weathertight	600 V	Brass	Unshielded	Black	Plastic	Bayonet Lock	5.6 A	-40 °C	115 °C	7	Gold	Receptacle, Female Sockets
Conxall/Switchcraft 4282-7SG-3ES	Bulkhead - Front Side Nut	Keyed	Weathertight	600 V	Brass	Unshielded	Black	Plastic	Bayonet Lock	5.6 A	-40 °C	115 °C	7	Gold	Receptacle, Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

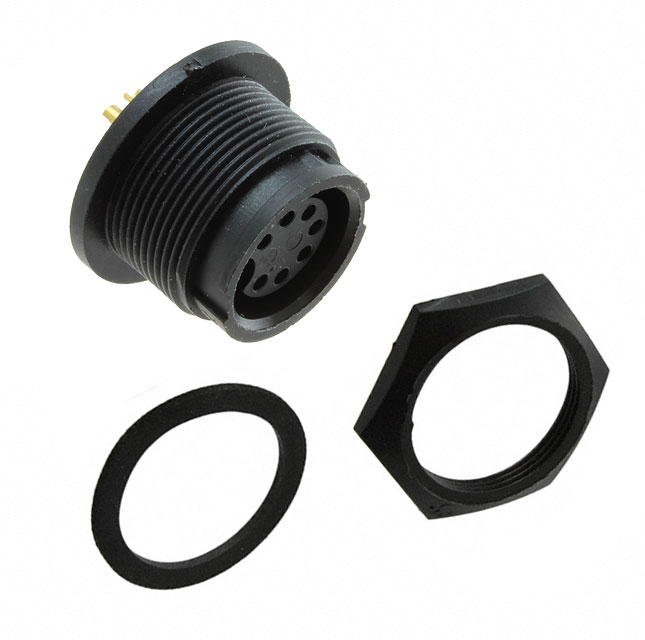

7 Position Circular Connector Receptacle, Female Sockets Solder Cup
